6AV6545-0BC15-2AX0 Siemens SIMATIC HMI TP170B Touchscreen

categories	Siemens TP Touch Panel
Brand	SIEMENS
Model	6AV6545-0BC15-2AX0
Warranty	365 Days
Product Line	TP170
Supply	Siemens TP170 HMI Touch Panel And Protecitve film

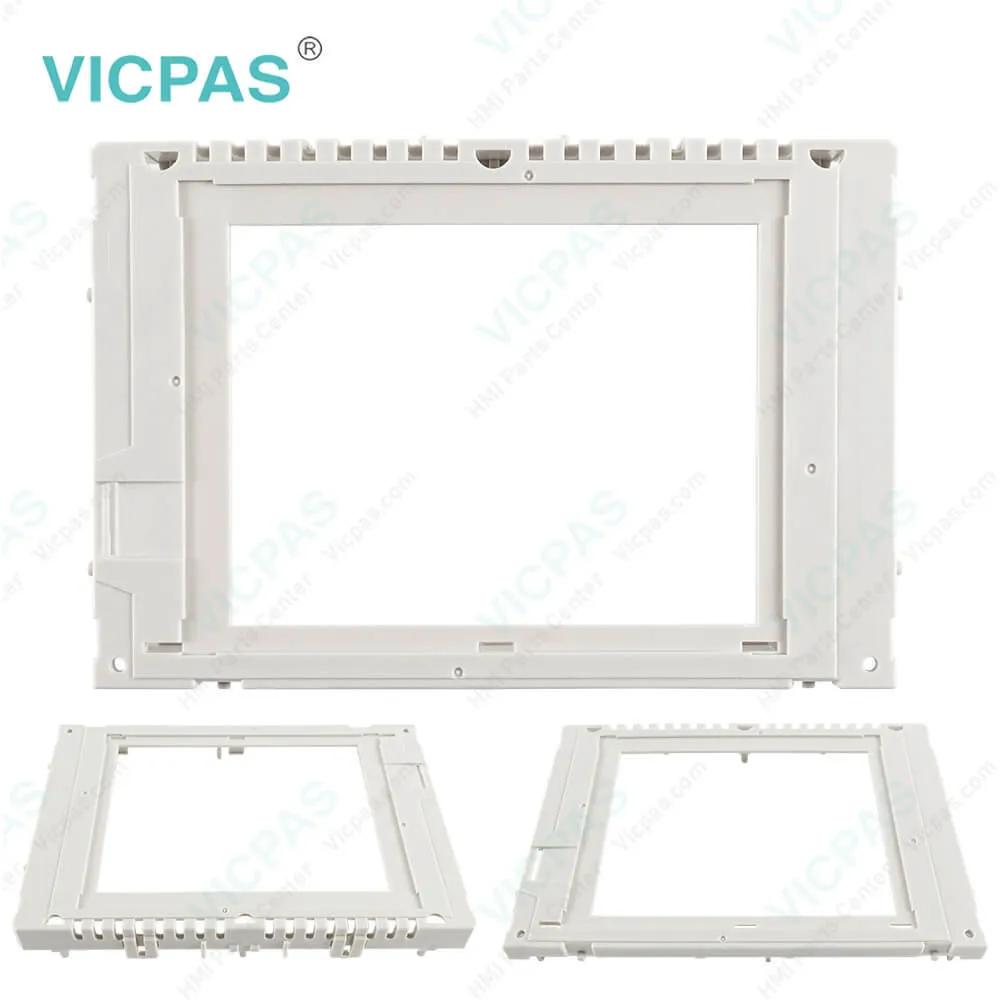

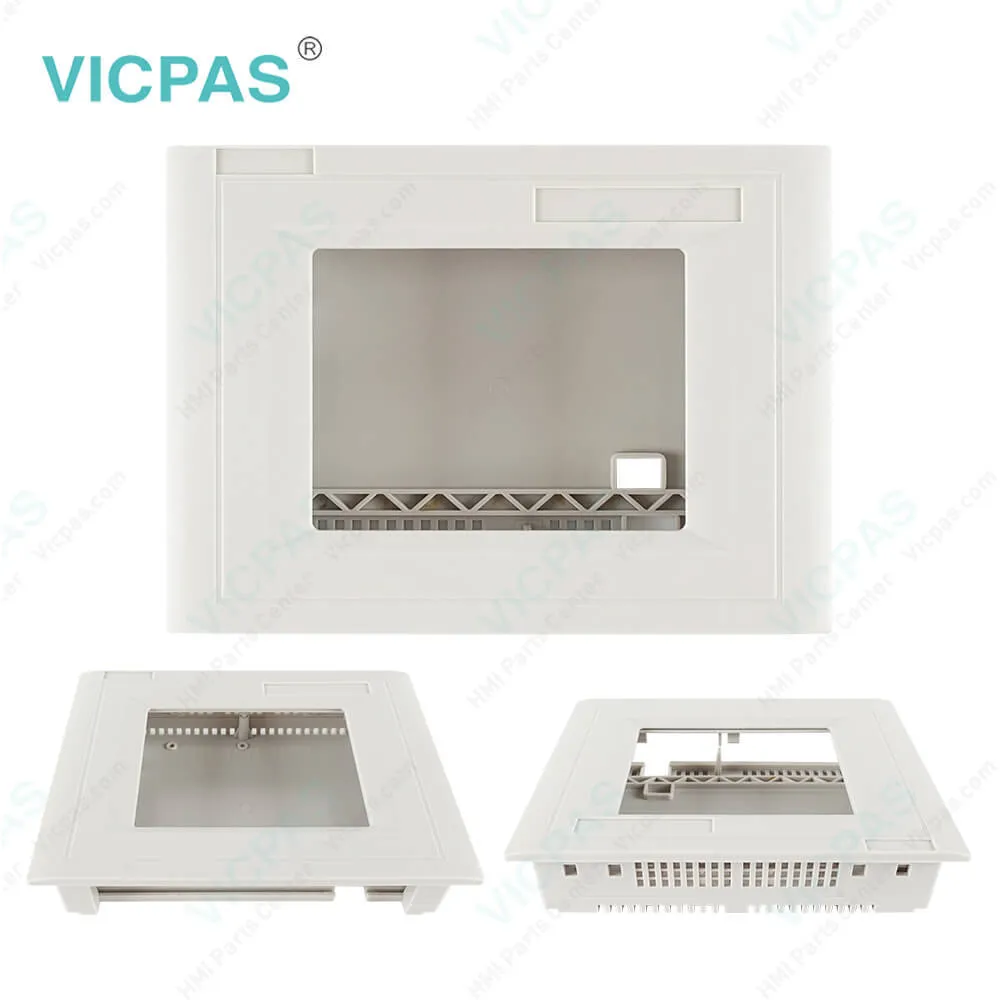

Parts	Touch Screen LCD Display Plastic Case
FOB port	Guangzhou, Shenzhen, Hongkong
Terms of Payment	Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Update Time	2026-01-30 20:44:25

{{item.condition_name}}

SKU {{item.sku}}

{{item.symbol}} {{item.price}}

Wholesale Price

Request a Quote

Leading Time{{selectedConditionObj.leading}}

{{nameObj.name}}{{nameObj.selectedValue}}

Shipping

Detail Information

Contact Best Price

Specifications:

Part Number :	6AV6545-0BC15-2AX0
Size:	5.7"
Display:	STN Display (LCD)
Warranty:	365 days Warranty
Product Line:	Siemens TP170

Resolution:	320 x 240;
Color Depth:	4 Blue Levels

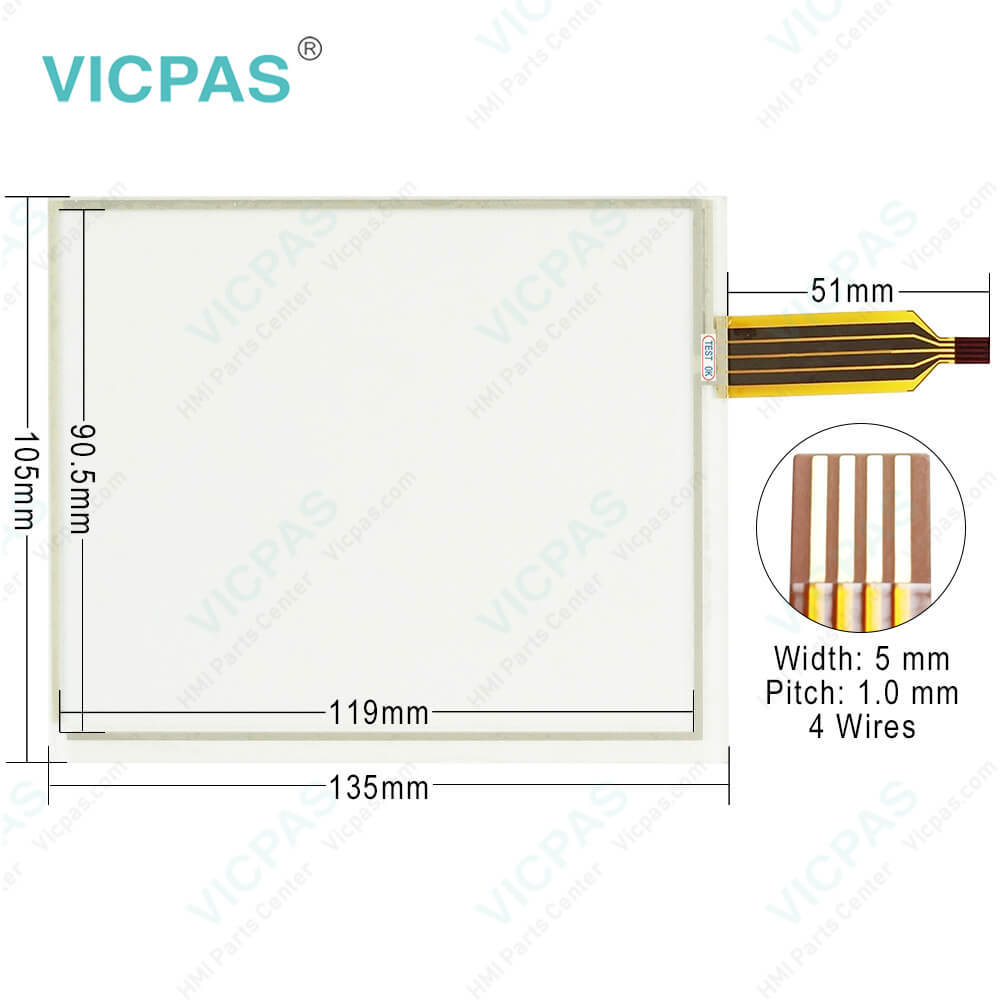

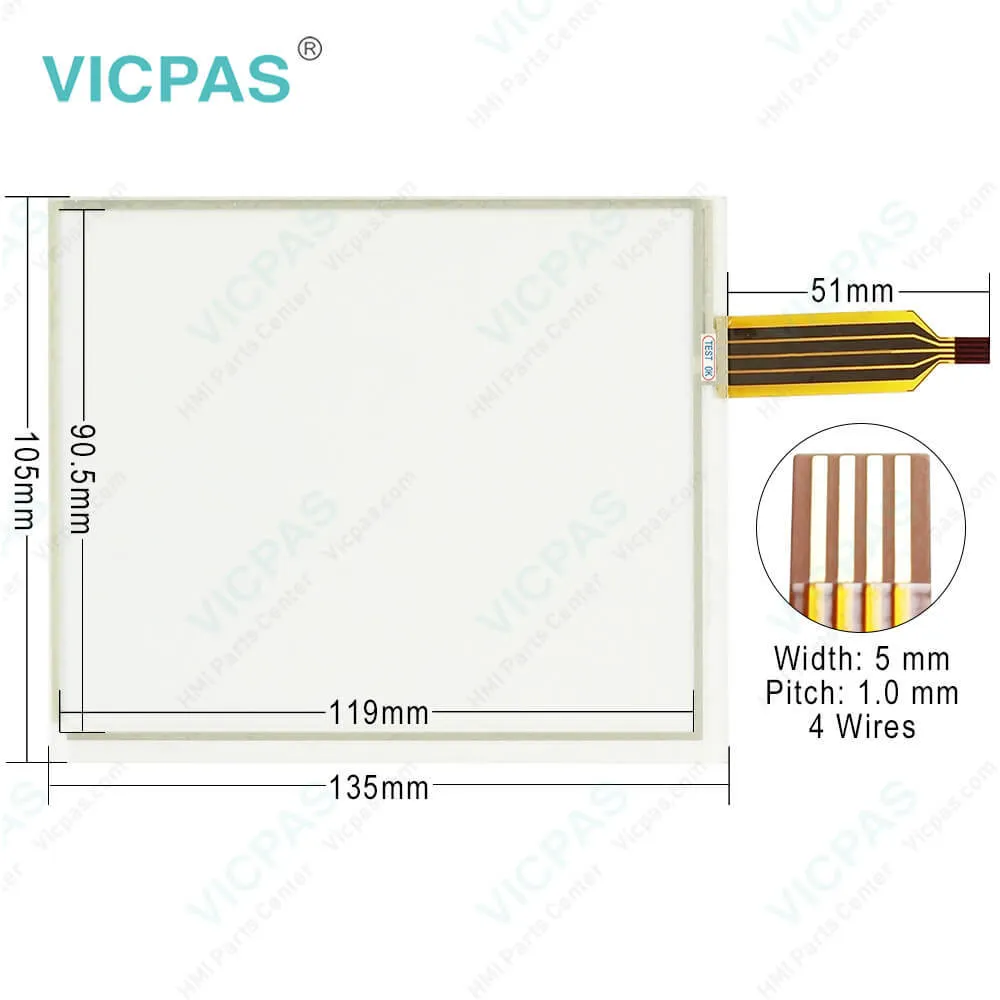

Touchscreen:	Analog/resistive
MTBF of Backlight:	approx. 50,000 h
PLC Connection:	SIMATIC S7-200

Related BB Teach Pendant Part No.:

6AV6545-0BC15-2AX0	Description	Inventory status
6AV6640-0CA01-0AX0	TP170 MICRO	In Stock
6AG1545-0BC15-2AX0	SIPLUS HMI TP170B COLOR	In Stock
6AV6545-0BA15-2AX0	TP170A TOUCH PANEL BLUE MODE STN-DISPLAY	In Stock
6AV6545-0BB15-2AX0	TP170 TOUCH PANEL	In Stock
6AV6545-0BC15-2AX0	TP170 TOUCH PANEL	In Stock

6AV6545-0BC15-2AX0 Siemens SIMATIC HMI TP170B Touchscreen PDF Download:

Touch Panel

6AV6545-0BC15-2AX0 HMI TP170 datasheet manual pdf

Siemens Simatic TP170 Panel manual

FAQ:

Question: How to install the TP170 HMI device?

Answer: To complete the installation, four spring terminals are required from the accessories for the TP 170micro, TP 170A and TP 170B and six spring terminals are required for the OP 170B. The installation seal must be mounted on the HMI device. If the installation seal is damaged, order a replacement.

Question: Which software options are available for the Siemens TP170?

Answer: WinCC Flexible/Sm@rtServiceThe Sm@rtService option enables you to access a remote HMI device from theHMI device or PC via Ethernet.

Question: What is the 6AV6545-0BC15-2AX0 Siemens TP170 HMI parts price?

Answer: Submit a fast quote, send Kernfix an email for best price.
