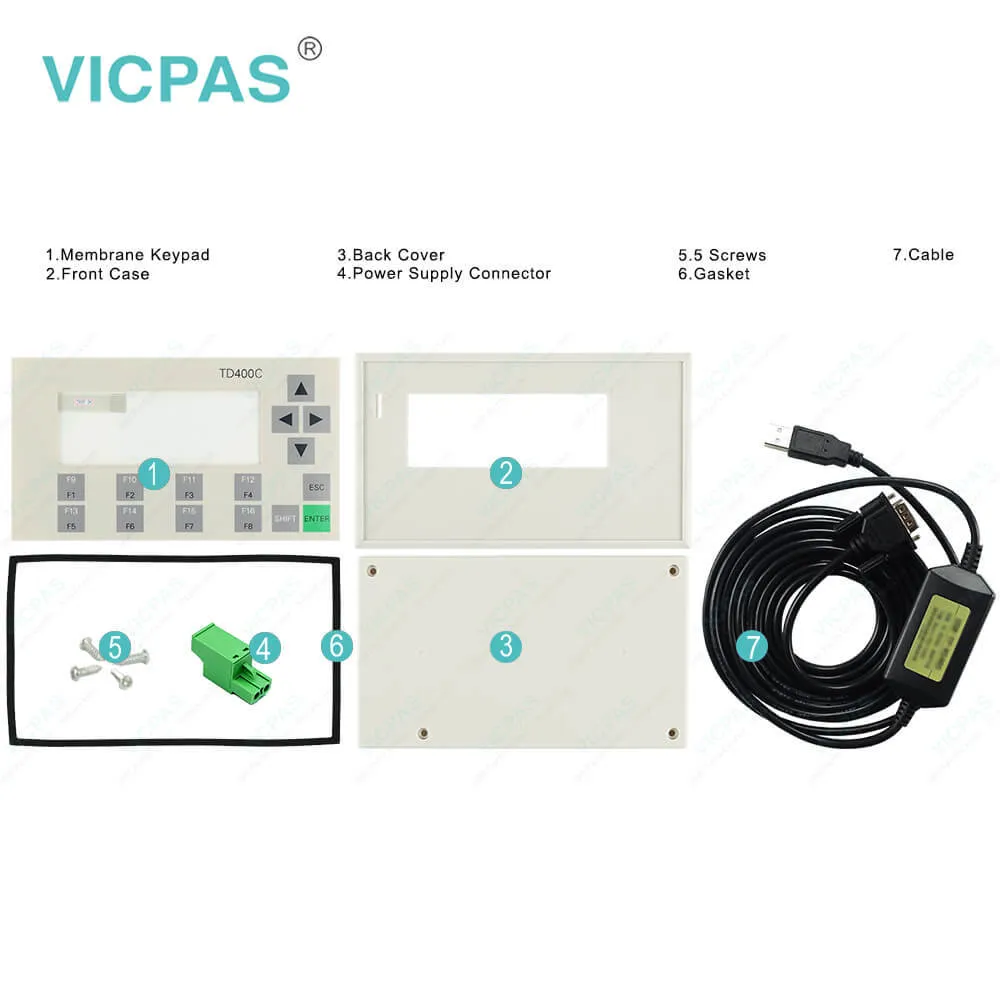

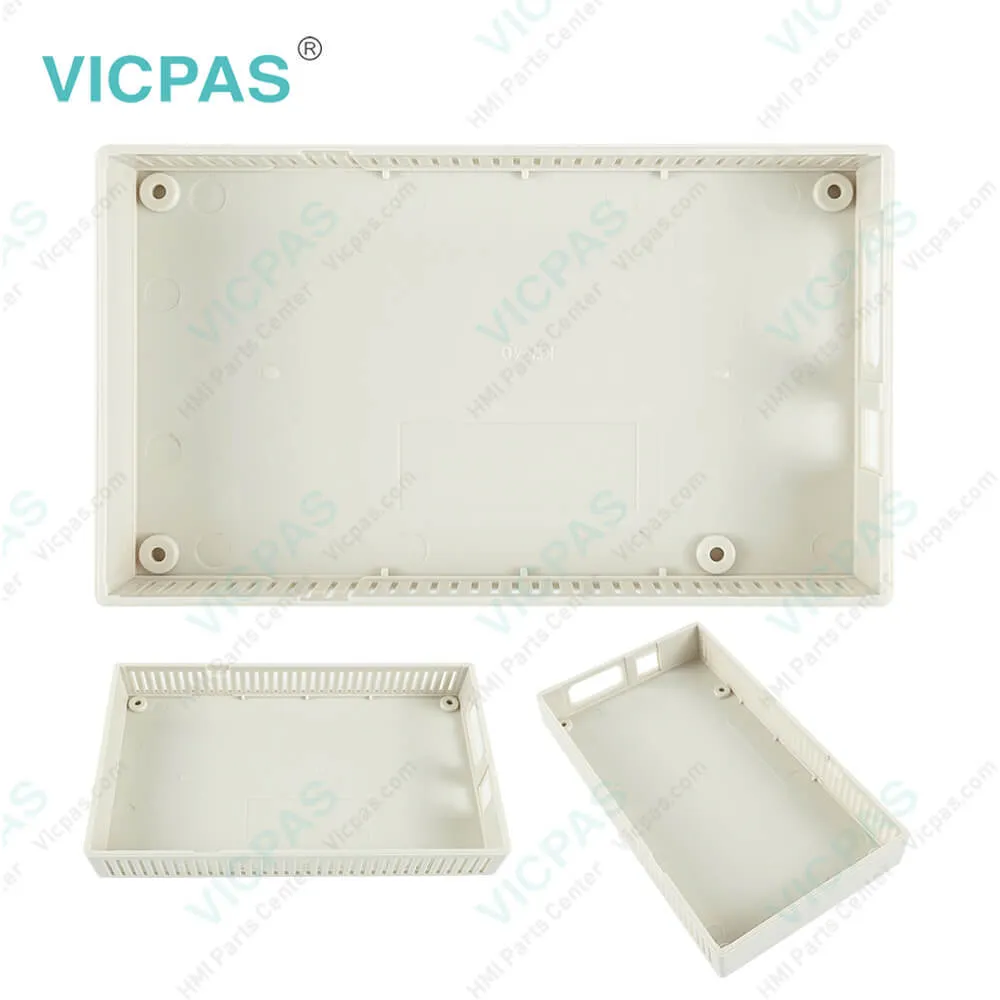

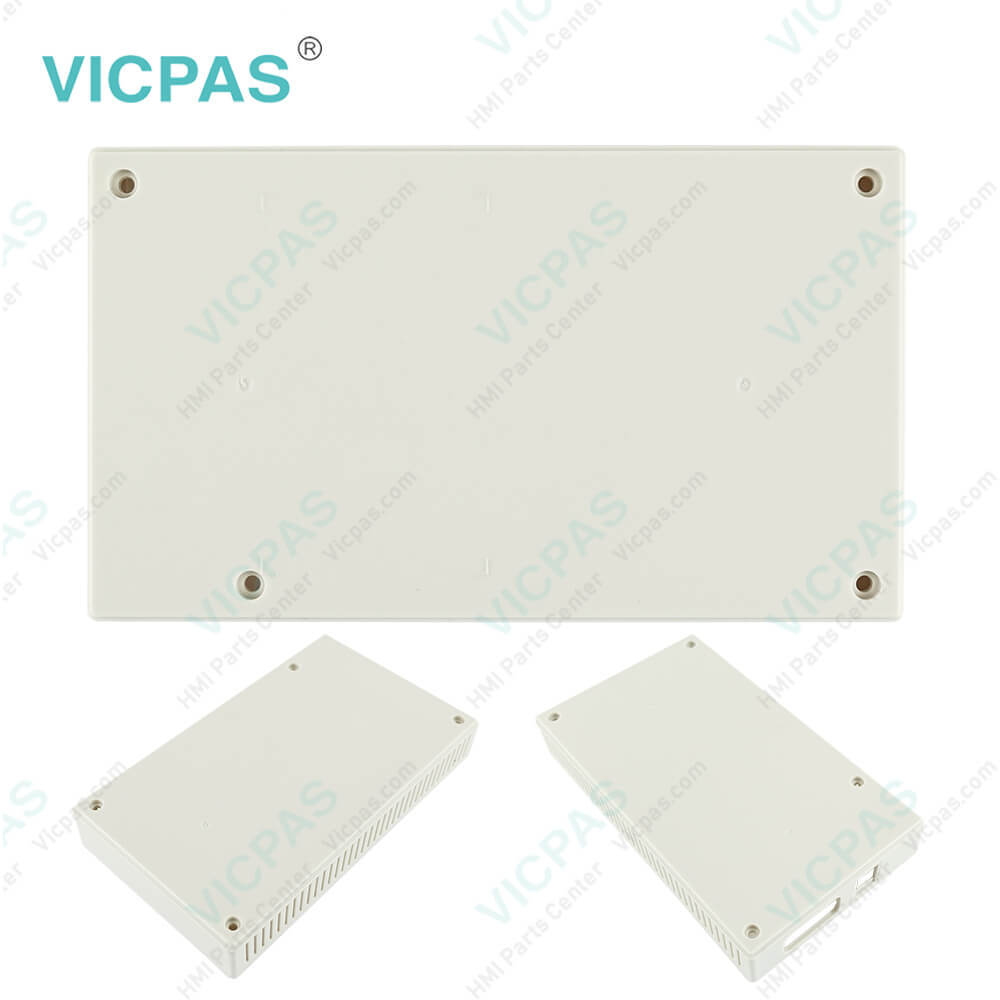

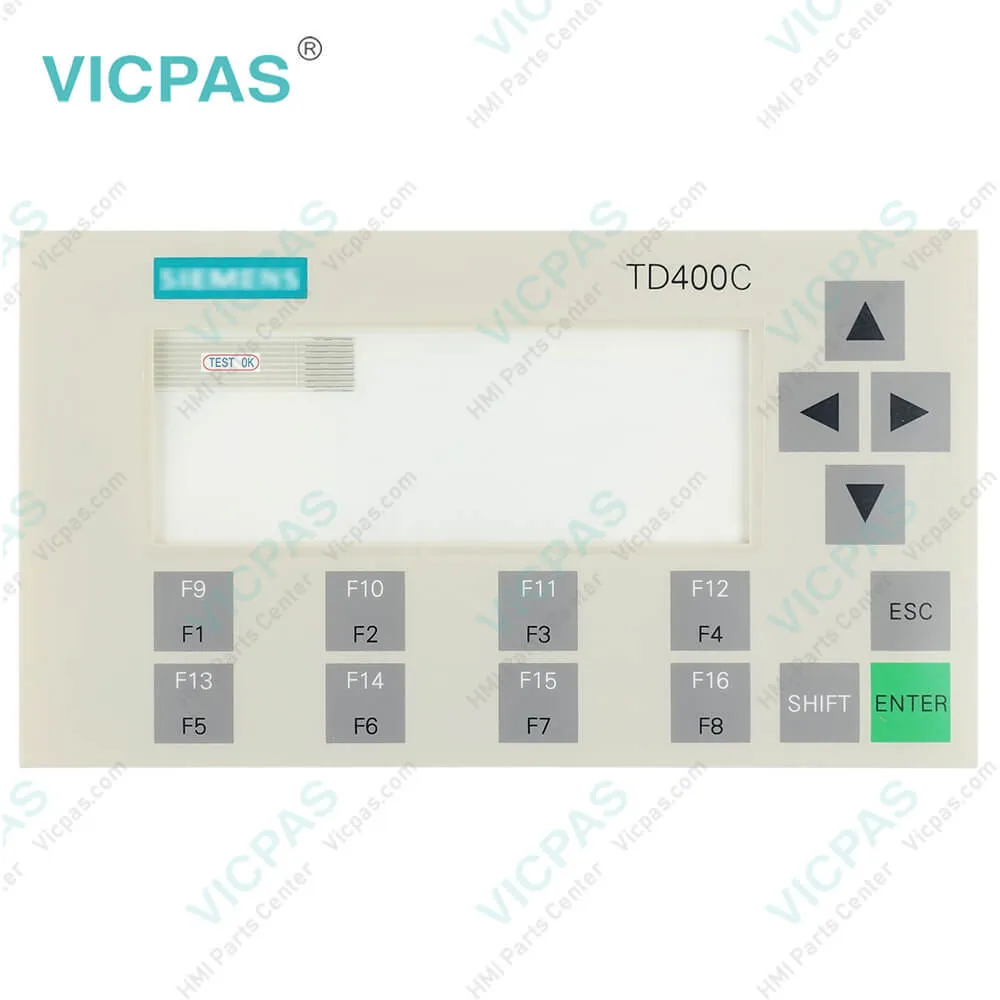

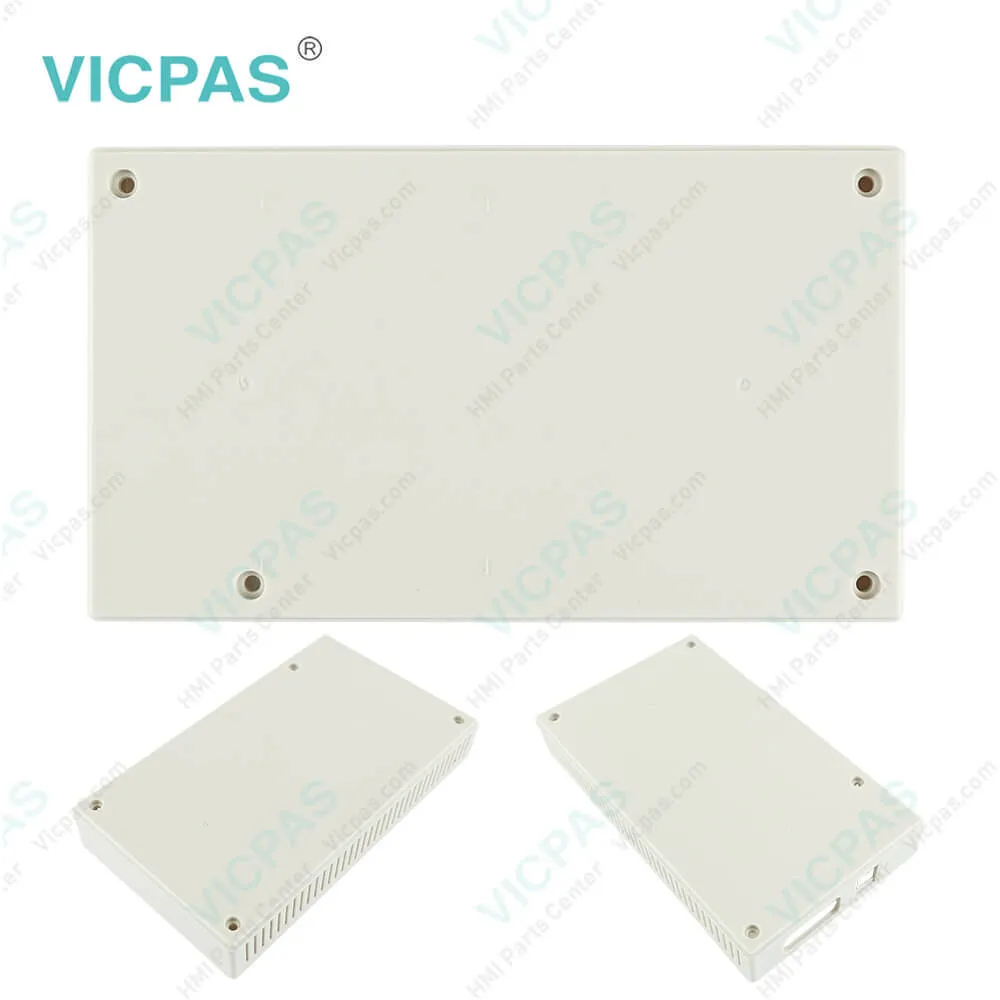

6AG1640-0AA00-2AX1 Siemens SIMATIC TD400C Membrane Switch

categories	Siemens TD Series
Brand	SIEMENS
Model	6AG1640-0AA00-2AX1
Warranty	180 Days
Product Line	Siemens TD400C
Supply	Siemens TD400C membrane keyboard
FOB port	Guangzhou, Shenzhen, Hongkong
Terms of Payment	Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Update Time	2026-01-30 20:53:09

{{item.condition_name}}

SKU {{item.sku}}

{{item.symbol}} {{item.price}}

Wholesale Price

Request a Quote

Leading Time{{selectedConditionObj.leading}}

{{nameObj.name}}{{nameObj.selectedValue}}

Shipping

Detail Information

Contact Best Price

Specifications:

Part Number :	6AG1640-0AA00-2AX1
Number of lines:	2
Size:	3.7"
Warranty:	6-Months Warranty
Product Line:	Siemens TD400C

Rated value (DC):	24 V
Function keys,:	15
Membrane keyboard:	Yes
Keyboard fonts:	US English
Resolution:	192 x 64

Related BB Teach Pendant Part No.:

6AG1640-0AA00-2AX1	Description	Inventory status
6AV6671-0AP00-0AX0	TD400C FRONT FILM, BLANK	In Stock
6AV6640-0AA00-0AX1	TD 400C TEXTDISPLAY, 4 LINES	In Stock
6AG1640-0AA00-2AX1	SIPLUS_TD400C	In Stock

6AG1640-0AA00-2AX1 Siemens SIMATIC TD400C Membrane Switch PDF Download:

SIMATIC TD Series

6AG1640-0AA00-2AX1 SIMATIC HMI TD400C datasheet pdf

Siemens Simatic KP1500 series HMI touchpanel manual

FAQ:

Question: How to program with 6AG1640-0AA00-2AX1 Siemens TD400C ?

Answer: The configuration data of the TD 400C is stored in the CPU of the S7-200. The message texts and theconfiguration parameters are created with the STEP 7-Micro/WIN V4 SP6 programming software. Additionalparameterization software is not required. The operating front design is configured with the Keypad Designer(component part of STEP 7-Micro/WIN V4 SP6).Special data areas are reserved in the CPU of the S7-200 for data exchange with the TD 400C. The TD 400Caccesses each of the required functions of the CPU direct via these data areas. User-friendly parameterizationtakes place via a dedicated TD 400 Wizard in STEP 7-Micro/WIN V4 SP6.

Question: Which is the design of Siemens TD400C ?

Answer: The TD 400C is connected to the S7-200 using the supplied connecting cable. A separate power supply is not required.It is also possible to connect several TD 400Cs to one S7-200.

Question: What is the 6AG1640-0AA00-2AX1 Siemens TD400C mebrane switch and shell HMI parts price?

Answer: Submit a fast quote, send Kernfix an email for best price.
