HOME / All / Allen Bradley / PanelView Plus 7 Standard Terminals / Panelview Plus 7 2711P-T10C22D8S Touch Panel Screen

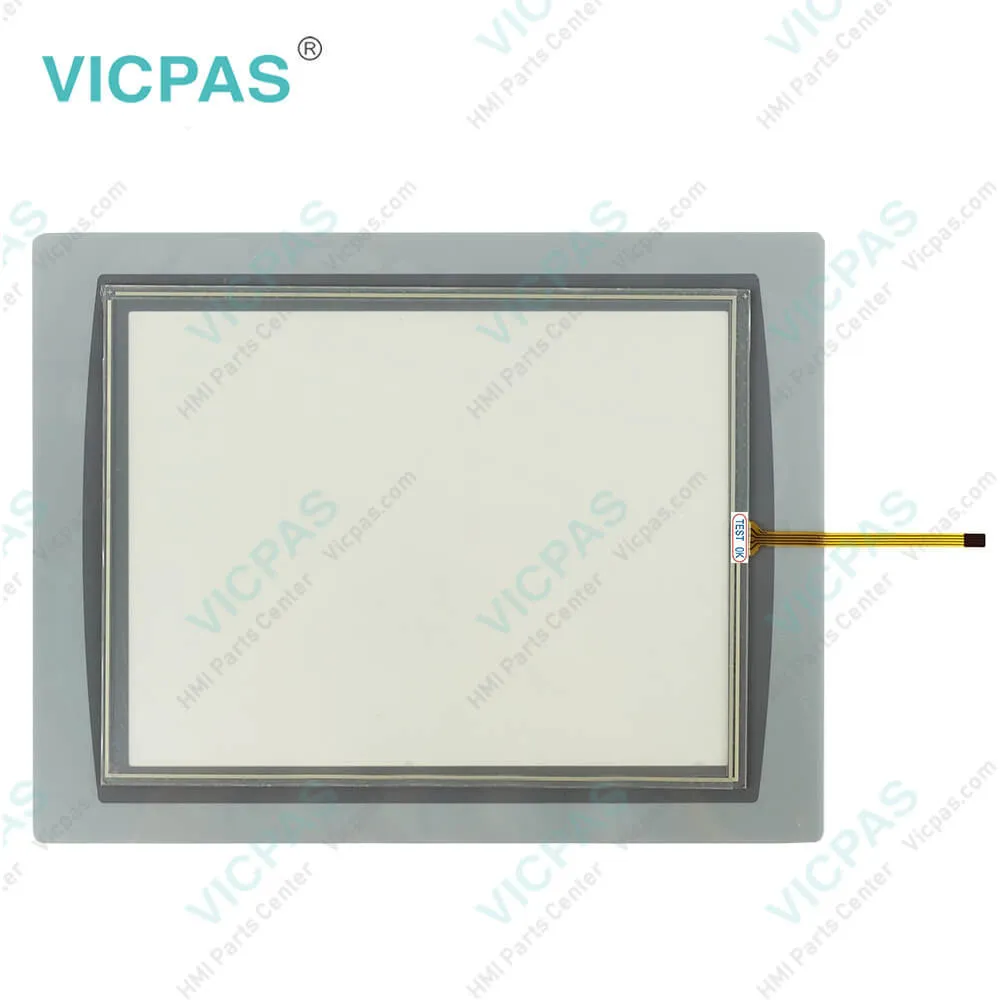

Panelview Plus 7 2711P-T10C22D8S Touch Panel Screen

categories	PanelView Plus 7 Standard Terminals
Model	2711P-T10C22D8S
Warranty	365 Days
Product Line	Panelview Plus 7
Supply	Panelview Plus 7 Terminals Touchscreen

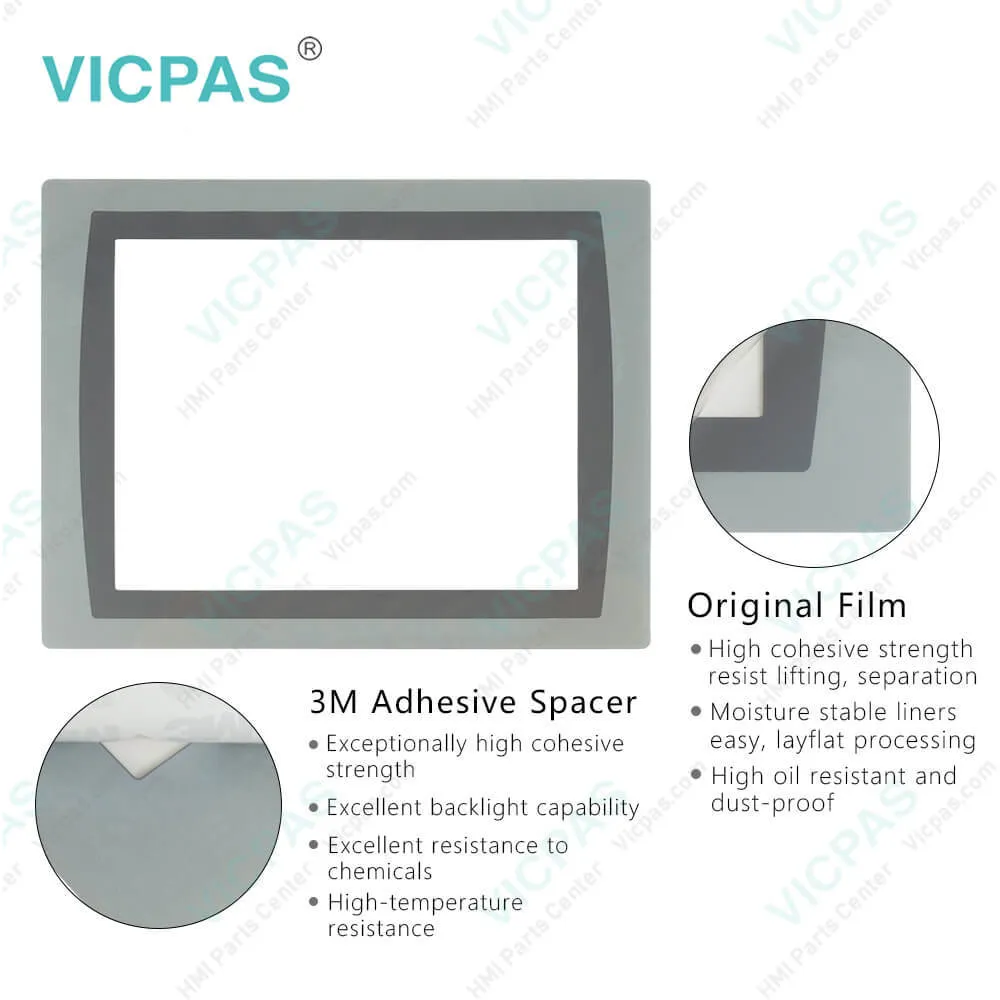

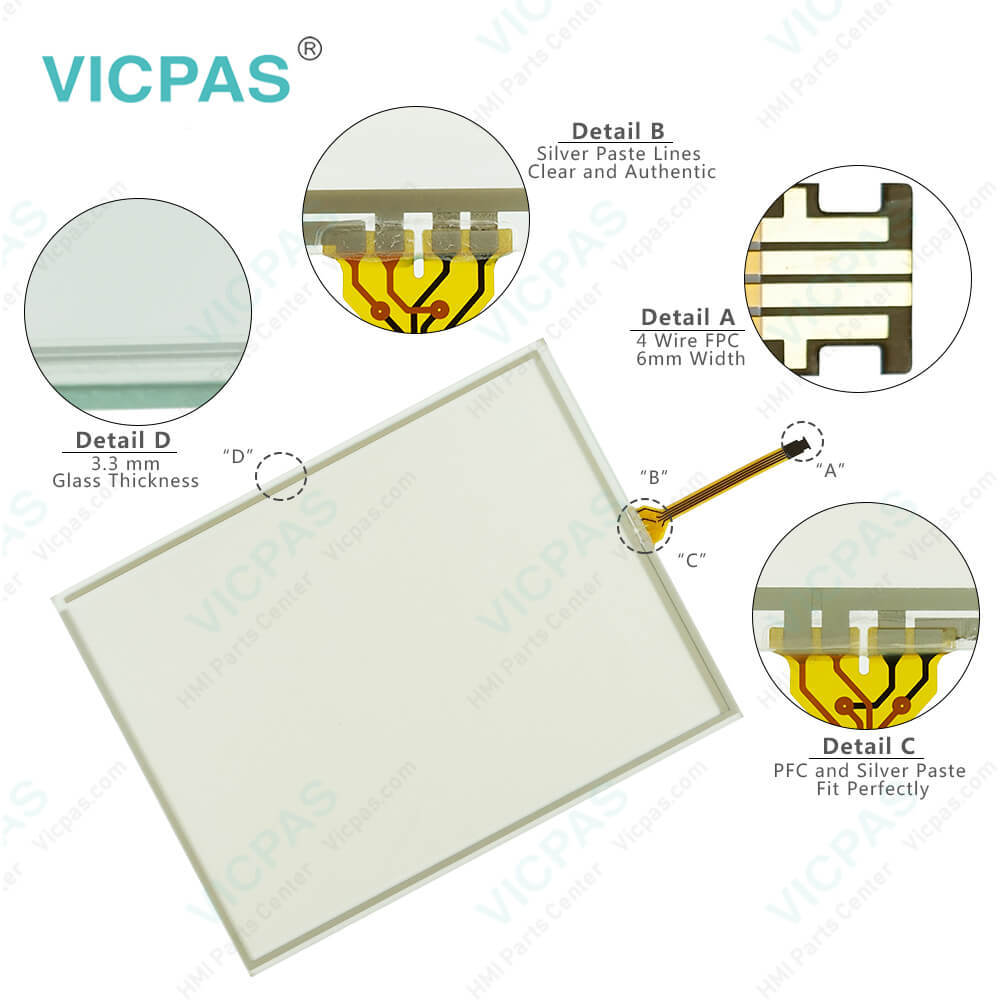

Parts	Touchscreen Panel Glass Protective Film
Terms of Payment	Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Update Time	2026-02-09 16:47:01

{{item.condition_name}}

SKU {{item.sku}}

{{item.symbol}} {{item.price}}

Wholesale Price

Request a Quote

Leading Time{{selectedConditionObj.leading}}

{{nameObj.name}}{{nameObj.selectedValue}}

Shipping

Detail Information

Contact Best Price

Specifications:

Part Number :	2711P-T10C22D8S
Display Size:	10.4 inches
Display Color:	Amber
Warranty:	365 days Warranty
Product Line:	Panelview Plus 7

Input Type:	Touchscreen
Mounting position:	vertical
Communication:	ControlNet
Software:	FactoryTalk

Panelview Plus 7 2711P-T10C22D8S Touch Panel Screen PDF Download:

PanelView Plus 7 Standard

PanelView Plus 7 HMI Standard Terminals Manuals

Allen Bradley PanelView Plus 7 Standard Terminals Technical Data

AB PanelView Plus 7 Standard Terminals 2711P-T10C22D8S User Manuals

PanelView Plus 7 Operator Interface Standard and Performance

FAQ:

Question: How to configure the Ethernet ports of the terminal 2711P-T10C22D8S?

Answer: 1. Press Terminal Settings, then choose Networks and Communications>Network Connections>Network Adapters. 2. To access the Ethernet link settings, press Settings. 3. To enable or disable the ports that you want to use for your network configuration, press Ethernet Link1 and Ethernet Link2. 4. To select Auto, press Ethernet Configuration. 5. To save the configuration, press OK. 6. For the changes to take effect, restart the terminal.

Question: How to change the Popup for String 2711P-T10C22D8S Entry?

Answer: You can use a string popup for character input instead of the popup keyboard or input panel. 1. Press Terminal Settings, then choose Input Devices>String Popup. 2. To select the preferred method for character input, press ‘Invoke pop-up character input instead of pop-up keyboard’. 3. Press OK.

Question: What are the steps to view the 2711P-T10C22D8S log generated by runtime files?

Answer: 1. Press View Log from the File Integrity Check dialog box. 2. To display details for that event, select an event and press More Details. 3. To clear all details from the log, press Clear All. 4. To return to previous dialog box, press Close.

Question: What is the size of Allen Bradley 2711P-T10C22D8S Toucshcreen Panel Glass?

Answer: The PanelView Plus 7 2711P-T10C22D8S Touch Screen Panel is 10.4-inch.
