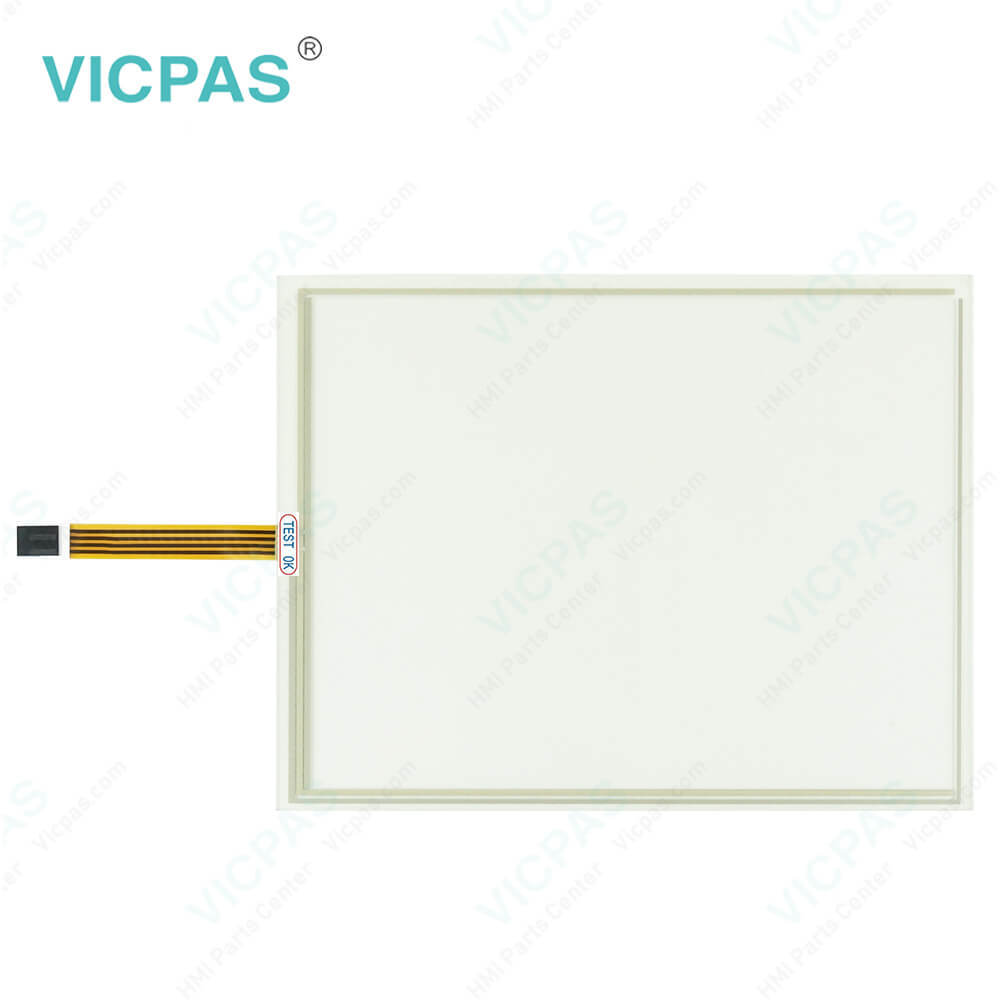

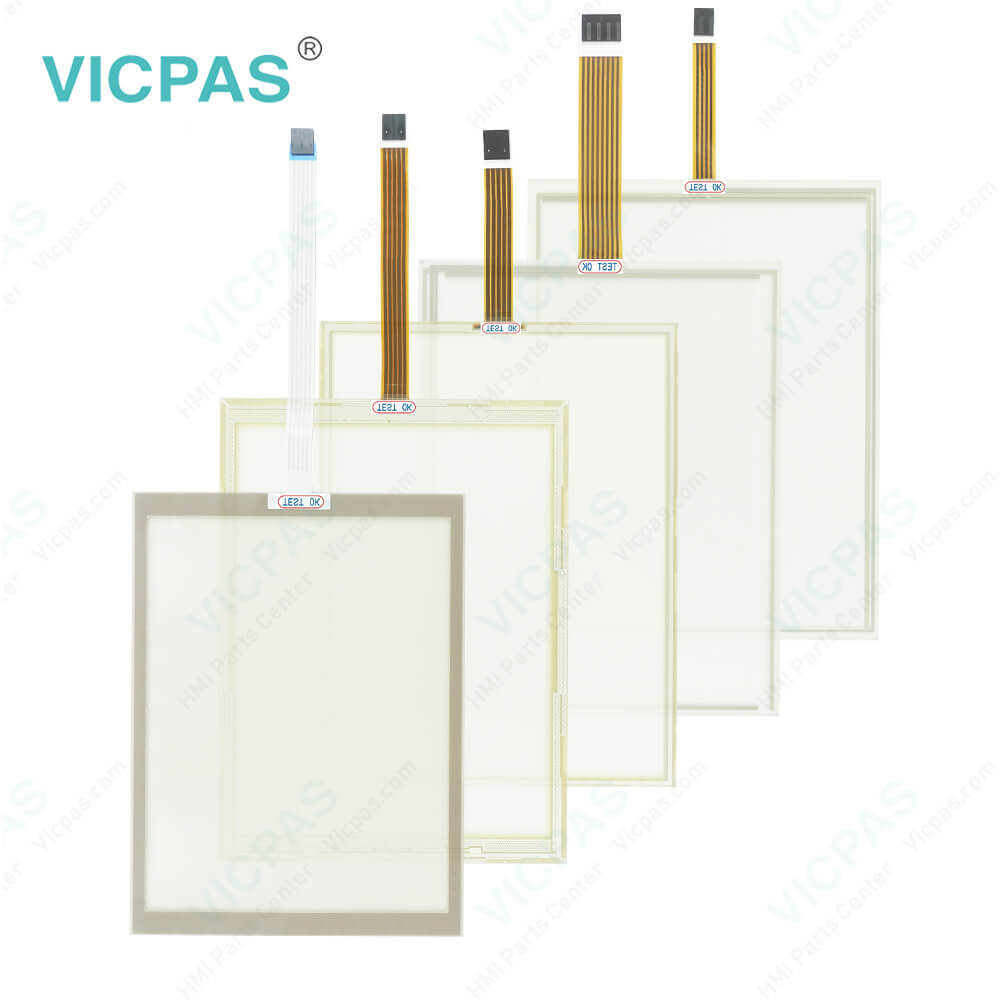

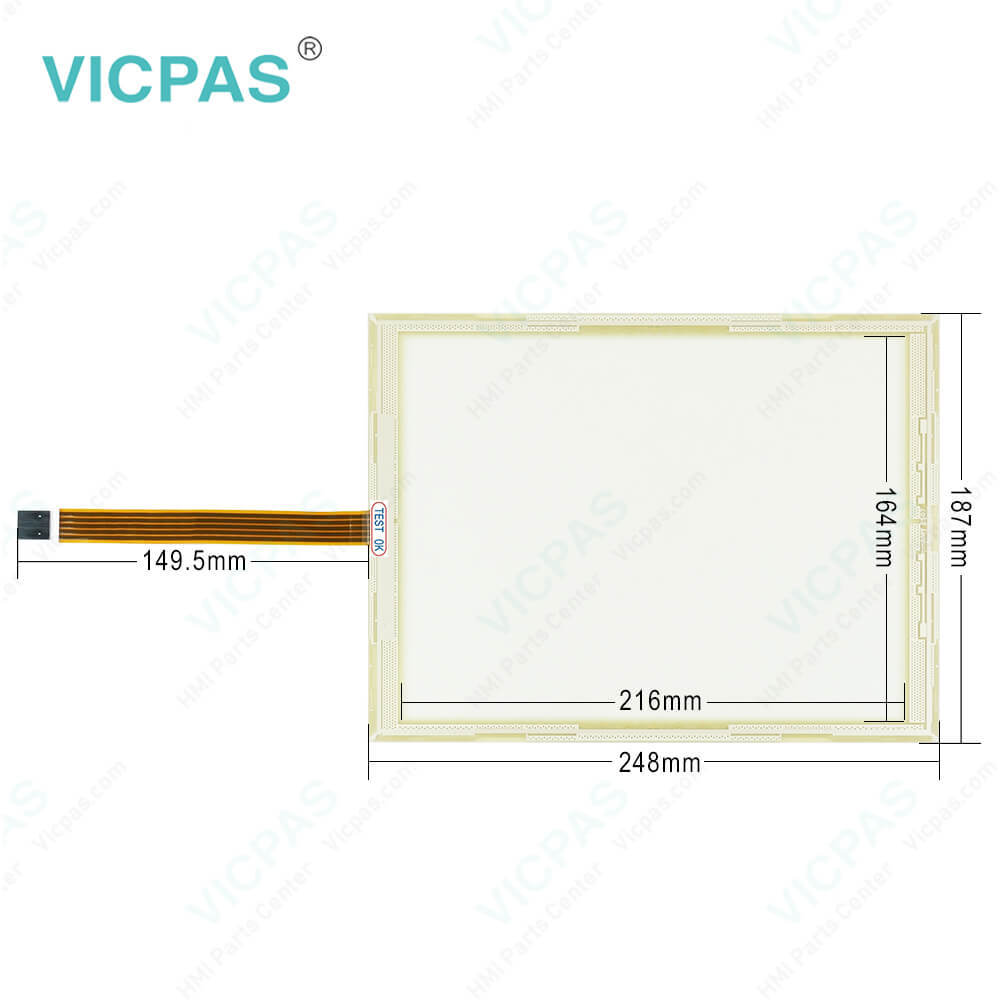

PP300 5PP320.1043-K07 B&R Touch Screen Panel Glass
| categories | B&R Power Panel 300 |
|---|---|
| Brand | B&R |
| Model | B&R Power Panel 300 5PP320.1043-K07 |
| Warranty | 1 Year VICPAS Warranty |
| Shipping | DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX |
| FOB port | Guangzhou, Shenzhen, Hongkong |
| Terms of Payment | Western Union, T/T, PayPal, Credit Card |
| Update Time | 2026-01-30 23:19:50 |
Shipping
Specifications:
| Part Number : | 5PP320.1043-K07 |
| Product Line: | Power Panel 300 |
| Screen diagonal: | 10.4 in |
| Warranty: | 365 days Warranty |
| Input Power: | 24 VDC |
| Display Type: | TFT color |
| Mounting position: | vertical |
| Input Type: | Touchscreen |
| Serial interface Type: | RS232 |
| Storage: | -20 to 70°C |
Related BB Teach Pendant Part No.:
| B&R Power Panel 300 5PP320.1043-K07 | Description | Inventory status |
| 4PP320.0653-K01 | B&R Power Panel 300 Protective Film Touch Screen Panel Glass | In Stock |
| 5PP320.0653-K02 | Power Panel 300 Touch Panel Glass Replacement | Available Now |
| 5PP320.0653-K03 | B&R Power Panel 300 Touch Screen Panel Repair Kit | In Stock |
| 4PP380.0844-K01 | B&R Power Panel 300 Touch Glass Protective Film Repair | Available Now |
| 4PP320.1043-31 | B and R Power Panel 300 Touch Digitizer Overlay Replacement | In Stock |
| 4PP320.1043-75 | Power Panel 300 HMI Touch Screen Organizer Protective Film | In Stock |
| 4PP320.1043-85 | Power Panel 300 Touch Panel Protective Film Overlay Repair | In Stock |
| 5PP320.1043-39 | Power Panel 300 B&R HMI Touch Screen Front Overlay | Available Now |
| 5PP320.1043-K0 | PP300 B&R Touch Screen Monitor Protective Film | In Stock |
| 4PP320.1043-K06 | B and R Power Panel 300 Touch Screen Hmi Repair | Available Now |
| 4PP320.1043-K11 | B&R Power Panel 300 Touch Screen Panel Glass | In Stock |
| 5PP320.1043-K18 | B&R Power Panel 300 Touch Screen Replacement | In Stock |
| 5PP320.1044-K04 | Power Panel 300 B&R MMI Touch Screen Glass | In Stock |
| 5PP320.1043-K04 | Power Panel 300 B and R Touch Screen Organizer | Available Now |
| 5PP320.1043-K07 | B&R Power Panel 300 Touch Digitizer Glass Repair | In Stock |
| 5PP320.1043-K10 | B and R Power Panel 300 Touch Screen Hmi Repair | Available Now |
PP300 5PP320.1043-K07 B&R Touch Screen Panel Glass PDF Download:
FAQ:
Question: How to upgrade B&R Power Panel 300 5PP320.1043-K07 BIOS Software?
Answer: The following steps should be carried out to upgrade or save 5PP320.1043-K07 BIOS:• Create bootable media.• Copy the contents of the *.zip file to the bootable media. If the B&R upgrade was already added when the bootable media was created using the B&R Embedded OS Installer, then this step is not necessary. • Connect the bootable media to the Power Panel and reboot the device. • The following start menu will be shown after booting.• The system must be rebooted after a successful upgrade.
Question: What is the procedure of creating a bootable USB flash drive for B&R 5PP320.1043-K07 upgrade files?
Answer: • Connect the USB flash drive to the PC. • If the drive list is not refreshed automatically, the list must be updated using the command Drives > Refresh. • Mark the desired USB flash drive in the drive list. • Change to the Action tab and select Install a B&R Update to a USB flash drive as type of action. • Enter the path to the MS-DOS operating system files. If the files are part of a ZIP archive, then click on the button By ZIP file.... If the files are stored in a directory on the hard drive, then click on the button By folder.... • In the B&R Upgrade text box, it's also possible to enter the path to the ZIP file for the B&R Upgrade Disk and select the file. • Click on the Start action button in the toolbar.
Question: What is the B&R Power Panel 5PP320.1043-K07 touch screen panel price?
Answer: Submit a fast quote, send Kernfix an email for best price.
Common misspellings:
5PP320.1043-K0
5PP320.1043-Ko7
5PP320.l043-K07
5PP32O.1043-K07
5PP320.1043-K007
