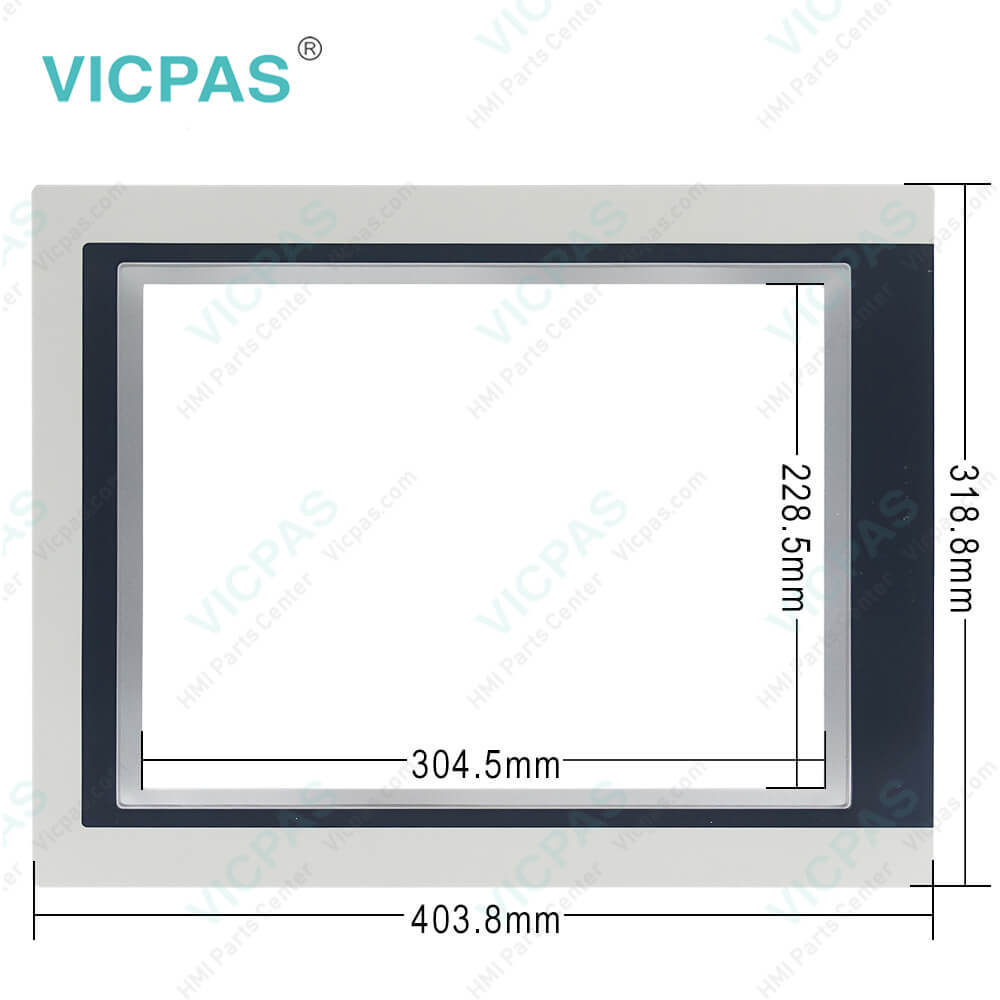

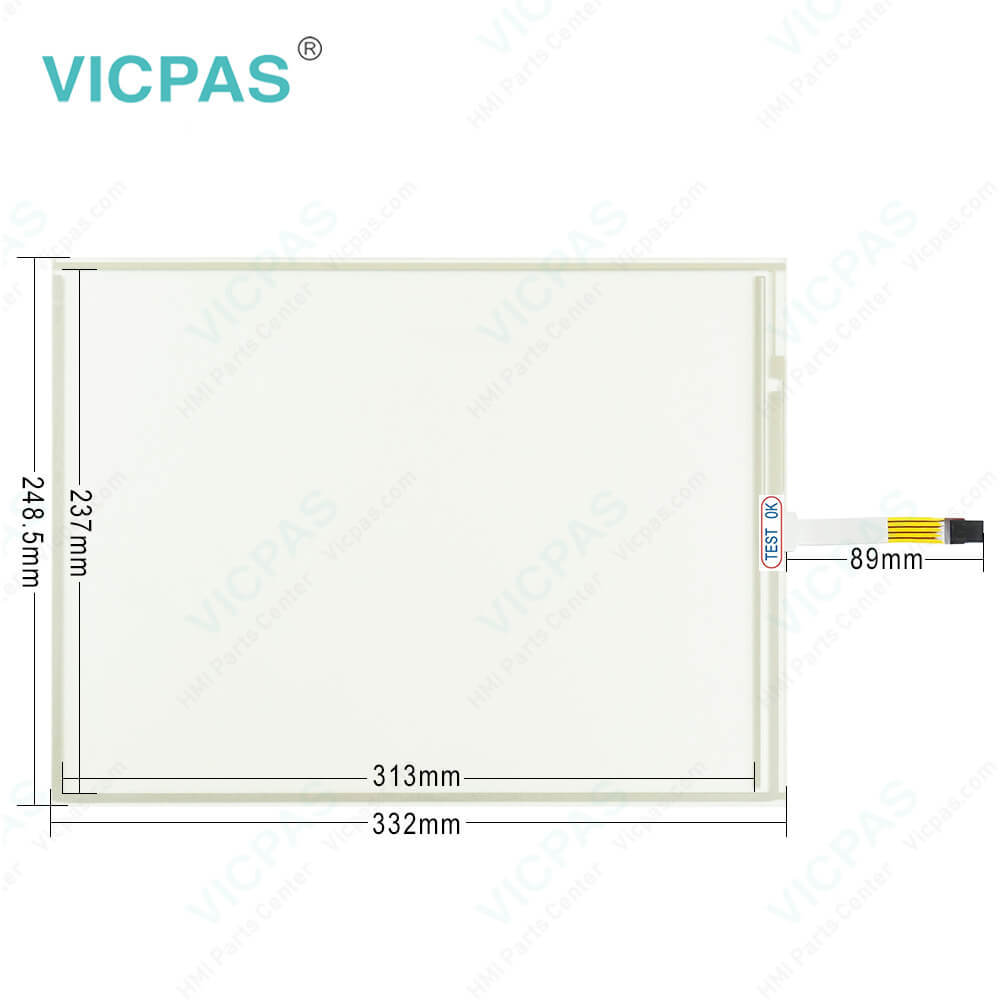

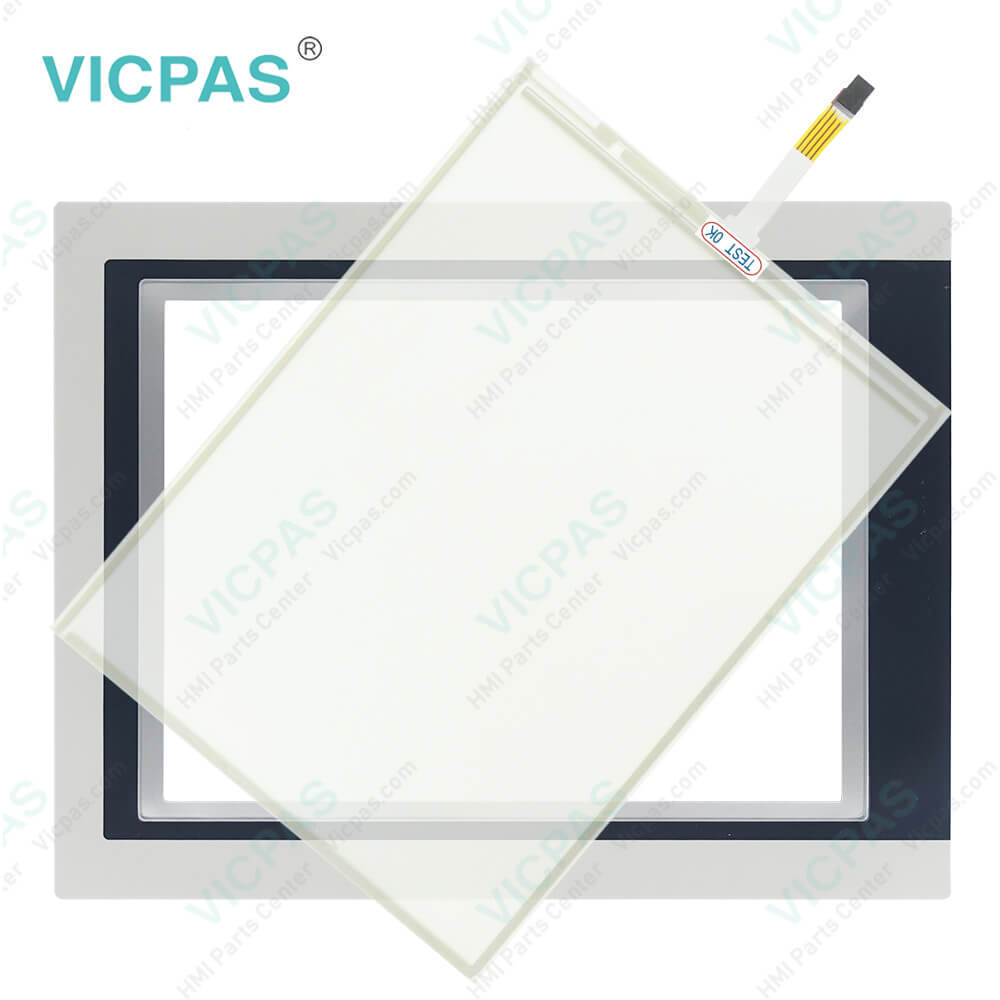

PP300 5PP320.1505-39 B&R Protective Film Touch Panel
| categories | B&R Power Panel 300 |
|---|---|
| Brand | B&R |
| Model | B&R Power Panel 300 5PP320.1505-39 |
| Warranty | 1 Year VICPAS Warranty |
| Touch Screen Panel Type | Resistance touch screen |
| Shipping | DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX |
| FOB port | Guangzhou, Shenzhen, Hongkong |
| Terms of Payment | Western Union, T/T, PayPal, Credit Card |
| Update Time | 2026-01-30 23:20:40 |
Shipping
Specifications:
| Part Number : | 5PP320.1505-39 |
| Product Line: | Power Panel 300 |
| Screen diagonal: | 15 in |
| Warranty: | 365 days Warranty |
| Input Power: | 24 VDC |
| Display Type: | TFT color |
| Mounting position: | vertical |
| Input Type: | Touchscreen |
| Serial interface Type: | RS232 |
| Storage: | -20 to 70°C |
Related BB Teach Pendant Part No.:
| B&R Power Panel 300 5PP320.1505-39 | Description | Inventory status |
| 5PP320.1043-K12 | B&R Power Panel 300 Touch Screen Panel Glass Repair | In Stock |
| 5PP320.1043-K14 | Power Panel 300 Touch Panel Glass Protective Film Replacement | Available Now |
| 5PP320.1043-K16 | B&R Power Panel 300 Touch Screen Panel Repair Kit | In Stock |
| 5PP320.1214-39 | B and R Power Panel 300 Touch Digitizer Replacement | In Stock |
| 5PP320.1214-K09 | Power Panel 300 HMI Touch Screen Organizer | In Stock |
| 4PP320.1505-31 | Power Panel 300 Touch Panel Protective Film Overlay Repair | In Stock |
| 5PP320.1505-39 | Power Panel 300 B&R HMI Touch Screen Front Overlay | Available Now |
| 5PP320.1505-3B | Power Power 300 B&R Touch Screen Monitor | In Stock |
| 5PP320.1505-K04 | B and R Power Panel 300 Front Overlay Touch Screen HMI Repair | Available Now |
| 5PP320.1505-K15 | B&R Power Panel 300 Touch Screen Panel Glass | In Stock |
| 4PP320.1505-K01 | B&R Power Panel 300 Touch Screen Replacement | In Stock |
| 5PP320.1505-K14 | Power Panel 300 B&R MMI Touch Screen Glass | In Stock |
PP300 5PP320.1505-39 B&R Protective Film Touch Panel PDF Download:
FAQ:
Question: What measures can be taken against preventing after-image effect in B&R Power Panel 300 5PP320.1505-39 LCD/TFT monitors?
Answer: There is no total solution; however, measures can be taken to significantly reduce this effect: • Avoid static pictures or screen content • Use screen savers (moving) when the display is not in use • Frequent picture change • Shut off the display when not in use Turning off the background lighting (backlight) does not influence the prevention of the afterimage effect.
Question: What is the procedure of creating a bootable USB flash drive for B&R 5PP320.1505-39 upgrade files?
Answer: • Connect the USB flash drive to the PC. • If the drive list is not refreshed automatically, the list must be updated using the command Drives > Refresh. • Mark the desired USB flash drive in the drive list. • Change to the Action tab and select Install a B&R Update to a USB flash drive as type of action. • Enter the path to the MS-DOS operating system files. If the files are part of a ZIP archive, then click on the button By ZIP file.... If the files are stored in a directory on the hard drive, then click on the button By folder.... • In the B&R Upgrade text box, it's also possible to enter the path to the ZIP file for the B&R Upgrade Disk and select the file. • Click on the Start action button in the toolbar.
Question: What is the B&R Power Panel 5PP320.1505-39 touch screen panel price?
Answer: Submit a fast quote, send Kernfix an email for best price.
Common misspellings:
5PP320.1505-9
5PP320.15O5-39
5PP320.l505-39
5PP32o.1505-39
5PP320.1505-339
