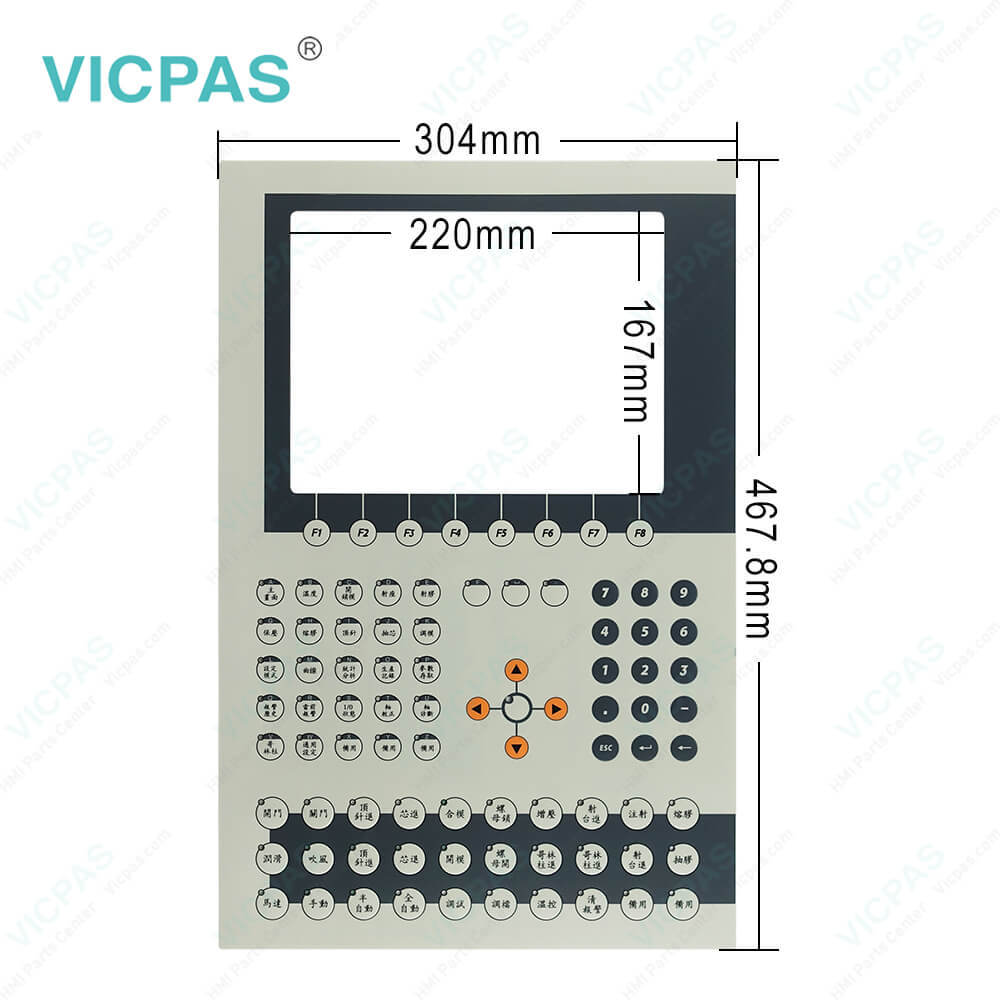

B&R PP400 4PP450.1043-K01 Touch Screen Organizer

FAQ:

Question: How to creating a B&R Power Panel DOS boot diskette in 4PP450.1043-K01 Windows XP?

Answer: • Place an empty 1.44 MB HD diskette in the disk drive. • Open Windows Explorer. • Right-click on the 3?" floppy icon and select "Format...". • Then select the checkbox "Create an MS-DOS startup disk", press "Start" and acknowledge the warning message with "OK".After creating the startup disk, some of the files must be deleted because of the size of the update. When doing this, all files (hidden, system files, etc.) must be shown on the diskette. In Explorer, go to the Tools menu, select Folder Options... and open the View tab. Now deactivate the option Hide protected operating system files (Recommended) (activated by default) and activate the option Show hidden files and folders. Now all files (marked) except Command.com, IO.sys and MSDOS.sys can be deleted.

Question: What is the procedure for changing the B&R Power Panel 400 4PP450.1043-K01 battery?

Answer: • Disconnect the power supply to the Power Panel • Touch the housing or ground connection (not the power supply!) in order to discharge any electrostatic charge from your body. • Remove the battery cover: The battery cover is found on the rear side of the Power Panel device.• Carefully remove the used battery from the holder by pulling the removal strip. • Do not touch the new battery with pliers or uninsulated tweezers ->risk of short circuiting. The battery should not be held by its edges.• Insert the new battery with correct polarity. The correct positioning of the removal strip must be taken into consideration. • Put on the battery cover and fasten the screws. • Reconnect the power supply to the Power Panel. • The data and time in BIOS may have to be set again.
