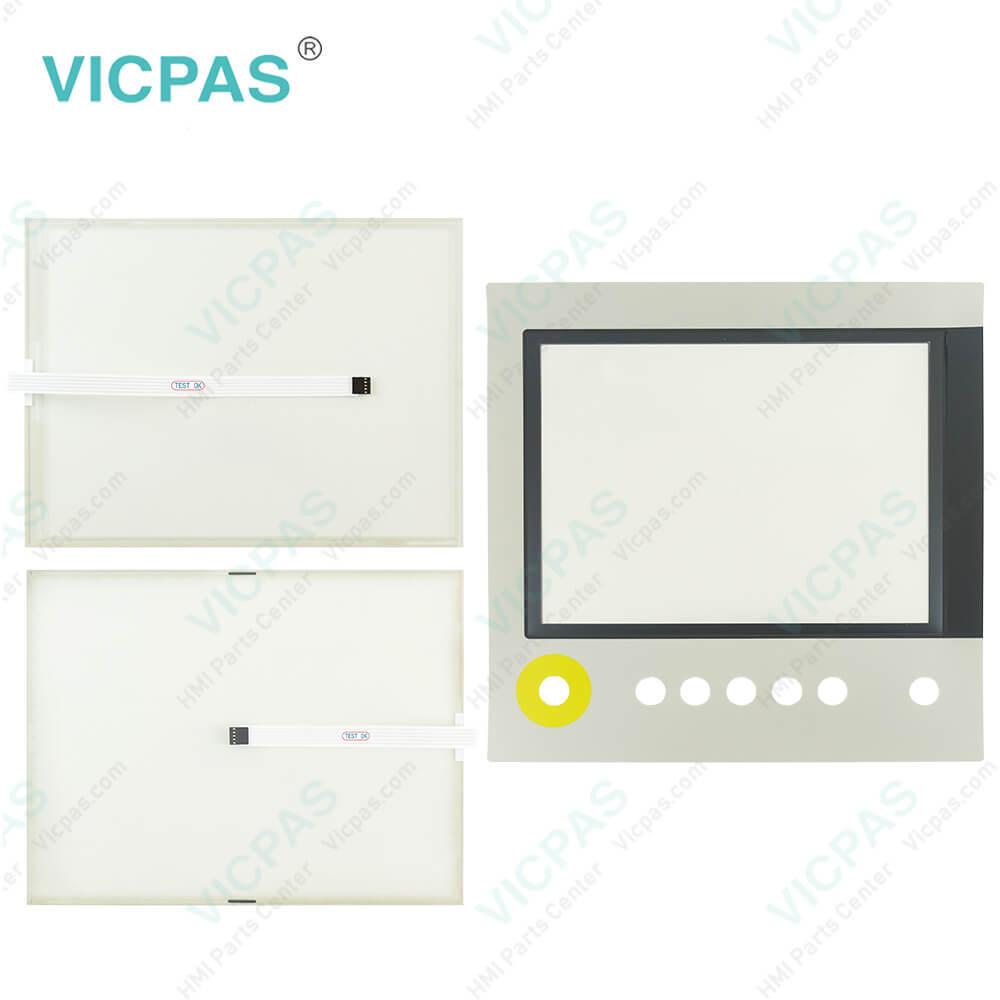

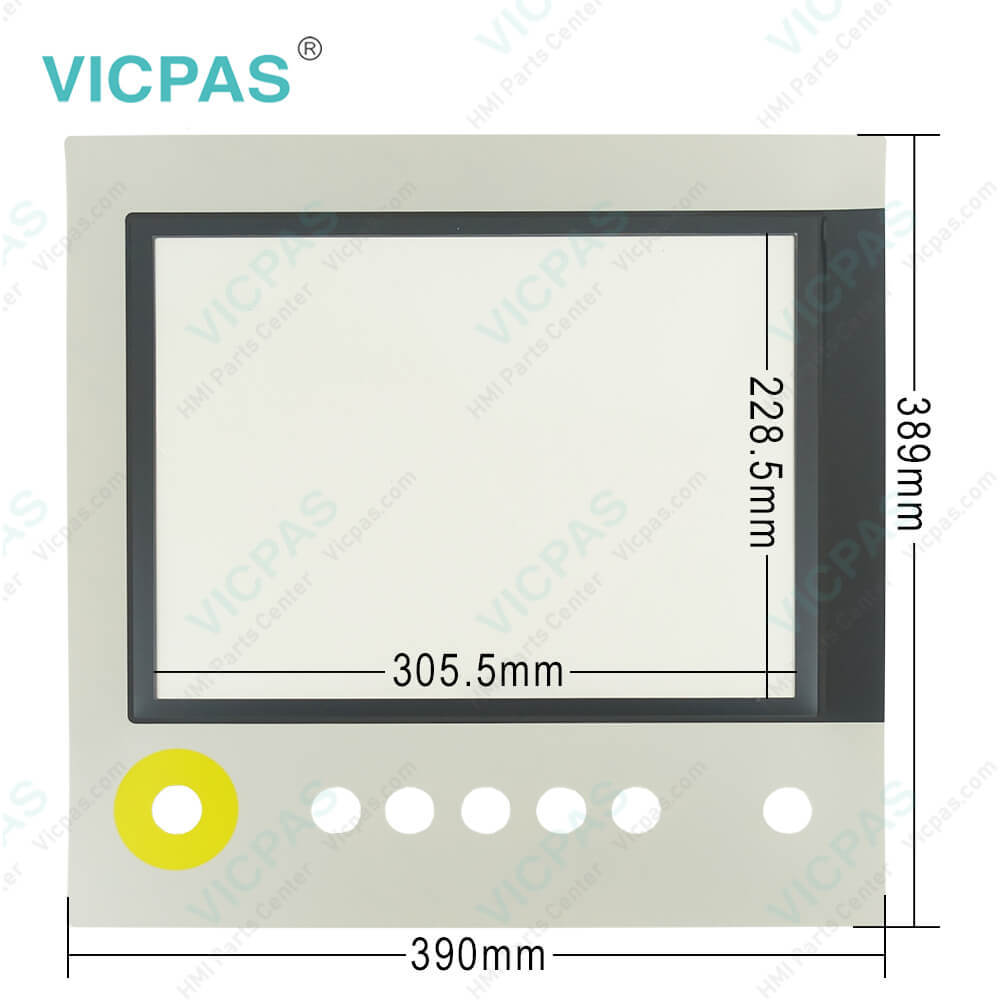

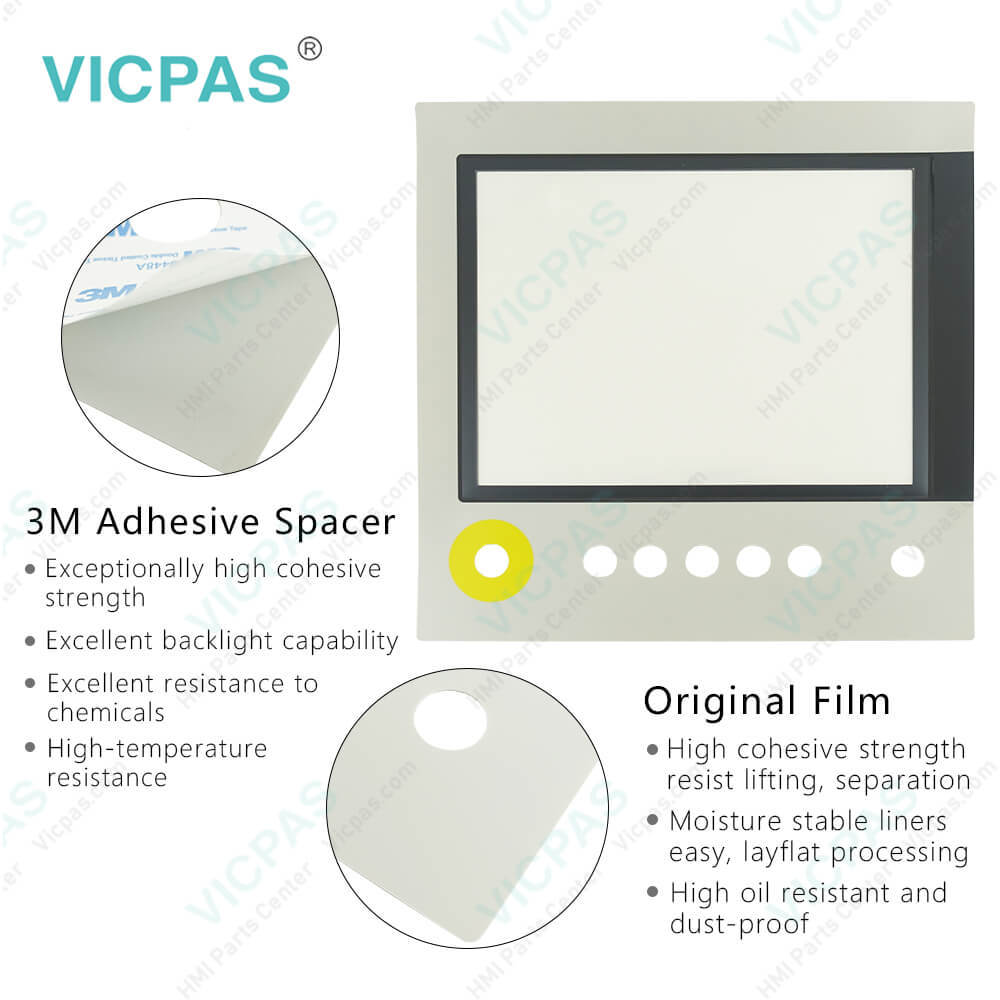

B&R 5AP920.1505-K89 Front Overlay Touch Screen Monitor

FAQ:

Question: What are the functions of B&R Automation Device Interface (ADI) - Control Center?

Answer: The functions provided by the Automation Device Interface (ADI) - Control Center vary according to the device series. To carry out a firmware upgrade, the following steps should be taken: • Changing display-specific parameters • Reading device-specific keys • Updating the key configuration • Enabling device-specific LEDs on a membrane keypad or keys •Reading and calibrating control devices (e.g. key switches, handwheels, joysticks, potentiometers) • Reading temperatures, fan speeds, statistical data and switch settings • Reading operating hours (power-on hours) • Reading user and factory settings • Reading software versions • Updating and backing up BIOS and firmware • Creating reports about the current system (support assistance) • Setting the SDL equalizer value when adjusting SDL cables • Changing the user serial ID

Question: How can Automation Panel 900 5AP920.1505-K89 screen burn-in be avoided?

Answer: • By constantly changing between static and dynamic images• By avoiding excessive brightness differences between foreground and background elements• By using colors with similar brightness• By using complementary colors in follow-up images• By using a screensaver
