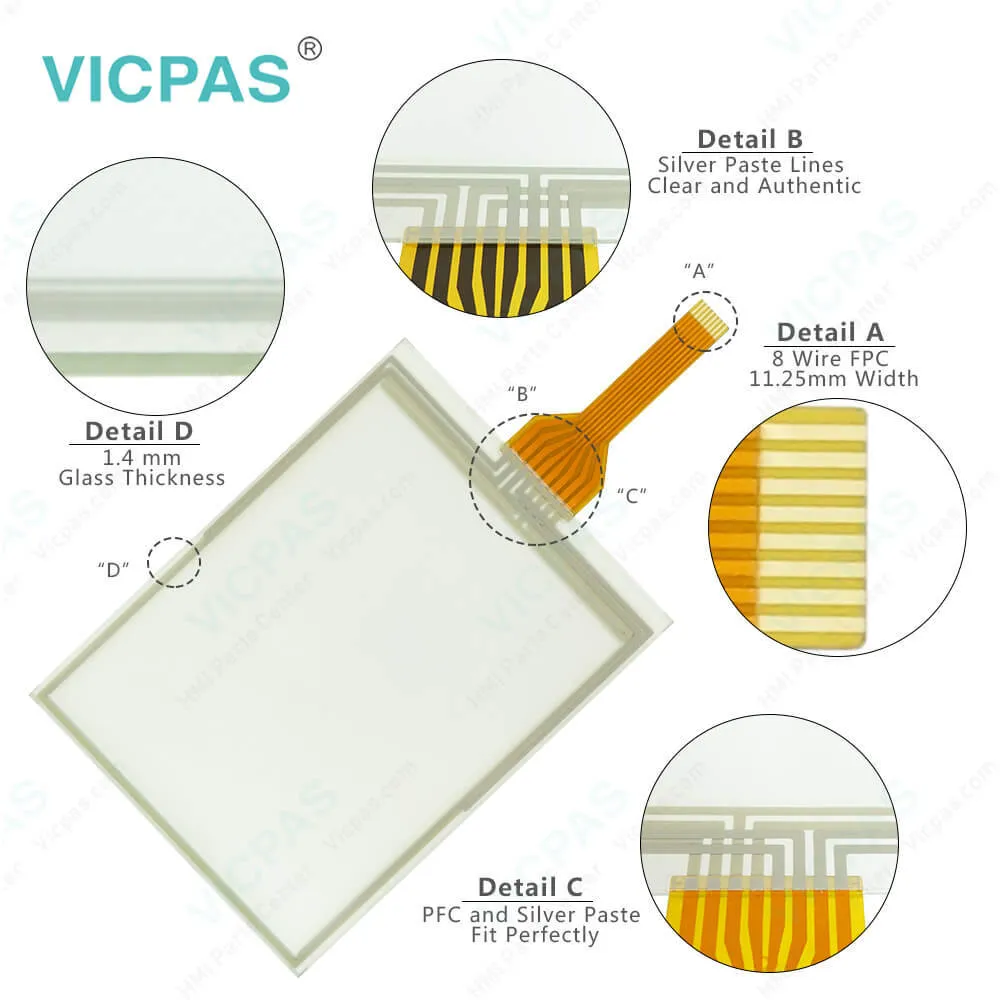

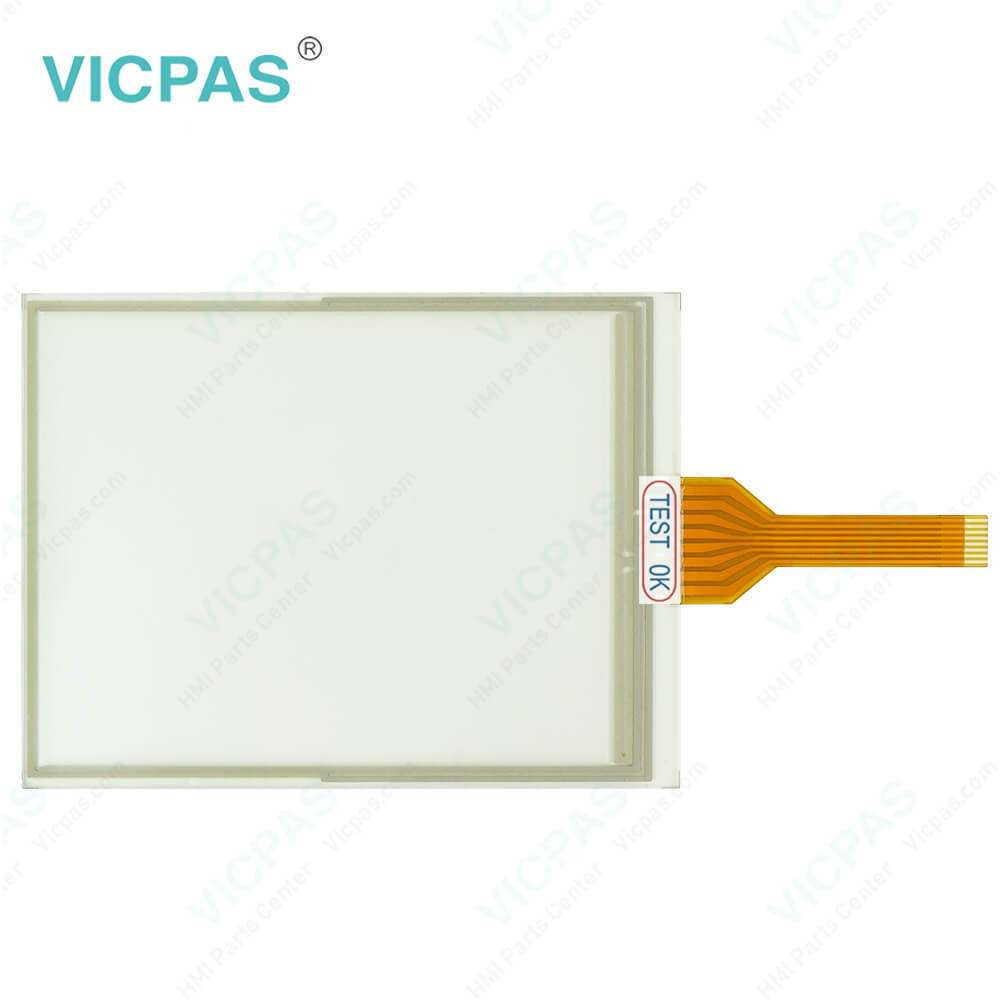

B&R 5D2219.03 Provit 2200 Touch Screen Replacement

FAQ:

Question: How can the B&R Provit 2200 5D2219.03 lifespan of backlights be extended?

Answer: • Set the display brightness to the lowest value that is still comfortable for the eyes • Use dark images • Reducing the brightness by 50% can result in an approximate 50% increase of the half-brightness time.

Question: How to change the B and R Provit 2200 5D2219.03 power supply?

Answer: 1. Disconnect the power supply.2. Unlock fuse holders by turning the slotted bolt in the direction of arrow3. Remove the fuse holder.4. Remove the old fuse from the fuse holder.5. Insert the new fuse.6. Replace the fuse holder. It can be fastened by using a flat head screwdriver in the opposite direction of the arrow.7. Reconnect the power supply.

Question: What measures can be taken against preventing after-image effect in Provit 2200 5D2219.03 LCD/TFT monitors?

Answer: There is no total solution; however, measures can be taken to significantly reduce this effect: • Avoid static pictures or screen content • Use screen savers (moving) when the display is not in use • Frequent picture change • Shut off the display when not in use Turning off the background lighting (backlight) does not influence the prevention of the afterimage effect.
