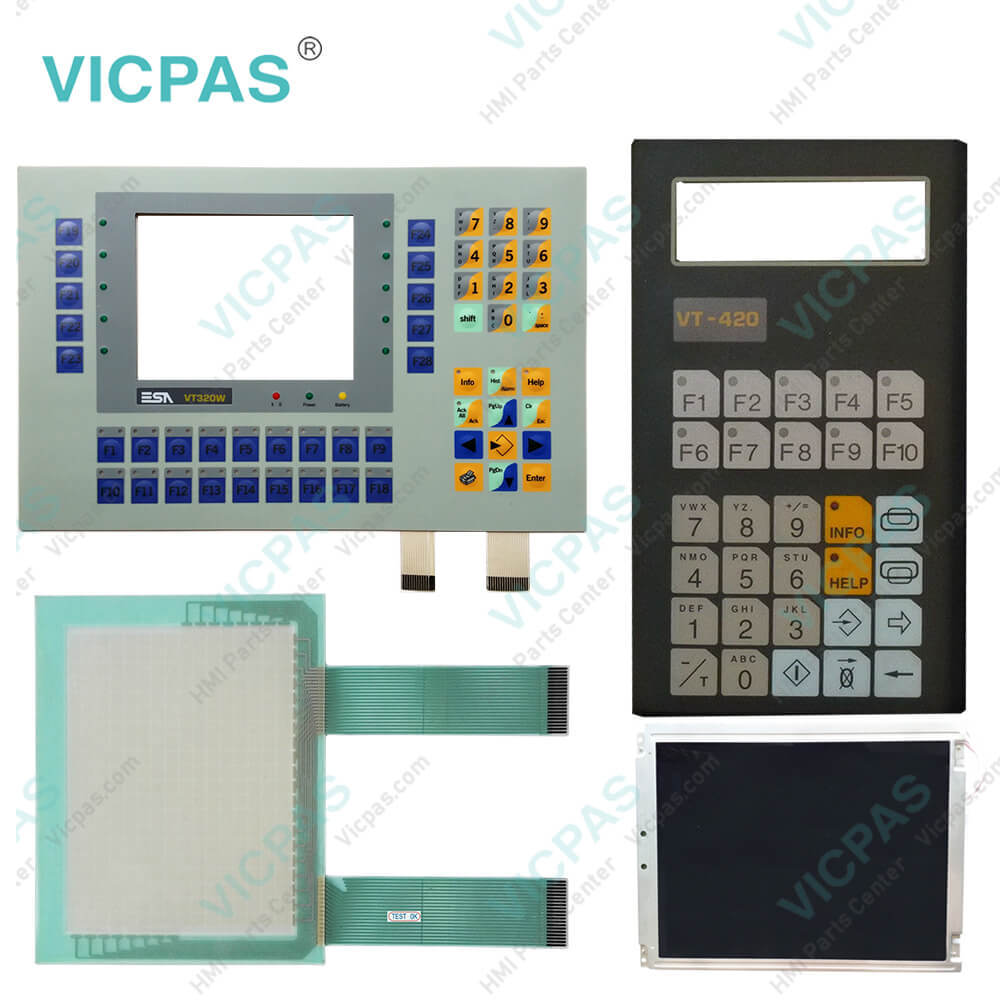

ESA Text HMI VT420 VT4201SF000 Membrane Switch Replacement

categories	VT Text and Graphic Series
Brand	ESA
Model	VT420 1SF000
Warranty	180 Days
Product Line	VT Text
Supply	VT420 Membrane Keypad
Terms of Payment	Western Union, T/T, PayPal, T/T ,Credit Card, Western Union
Update Time	2026-01-31 01:20:30

{{item.condition_name}}

SKU {{item.sku}}

{{item.symbol}} {{item.price}}

Wholesale Price

Request a Quote

Leading Time{{selectedConditionObj.leading}}

{{nameObj.name}}{{nameObj.selectedValue}}

Shipping

Detail Information

Contact Best Price

Specifications:

Brand:	ESA
Display Type:	TEXT LCD
Resolution:	320x240
Warranty:	6-Months Warranty
Product Line:	VT TEXT

Display area size:	4.55x3.43
Columns by Rows:	Depending on used Font
Size:	5.7"
Part Number :	VT4201SF000

Related BB Teach Pendant Part No.:

VT420 1SF000	Description	Inventory status
VT420L1SF000	ESA Text HMI VT420L1SF000 Membrane Keypad Repair Replacement	In Stock
VT42025F000	ESA Text HMI VT420 VT42025F000 Membrane Keyboard Replacement	In Stock
VT4201SF000	ESA Text HMI VT420 VT4201SF000 Membrane Switch Replacement	In Stock
VT4202SF000	ESA Text HMI VT420 VT4202SF000 Membrane Keypad Replacement	In Stock
VT4202SFF00	ESA Text HMI VT420 VT4202SFF00 Terminal Keypad Repair Part	In Stock

ESA Text HMI VT420 VT4201SF000 Membrane Switch Replacement PDF Download:

VT Text & Graphic

Beijer E200 Maintenance Manuals

Beijer E200 datasheet pdf

FAQ:

Question: How to adjust the contrast on the ESA VT420 Display?

Answer: To improve the quality of the representation on the display it may be necessaryto adjust its contrast. This can be done by rotating the trimmer (C) atthe back of the VT ; turn it (using a small screwdriveror a trimmer tool) in one direction and, if the display quality worsens,turn it the other way.

Question: What is the VT420 Termination of CAN line?

Answer: The VT in question integratesthe termination resistances of the serial line (typically 120 ohms)which can be inserted by means of a jumper (preset on 1-2, line not terminated).To activate the termination:• Make sure the device is not connected to the power supply.• Remove the cover.• Identify the jumper unit J2.• Position the jumper between pins 2 and 3 (line terminated).• Replace the back cover.• Reconnect the power supply.

Question: What is ESA VT420 mebrane keyboard HMI parts price?

Answer: Submit a fast quote, send Kernfix an email for best price.
