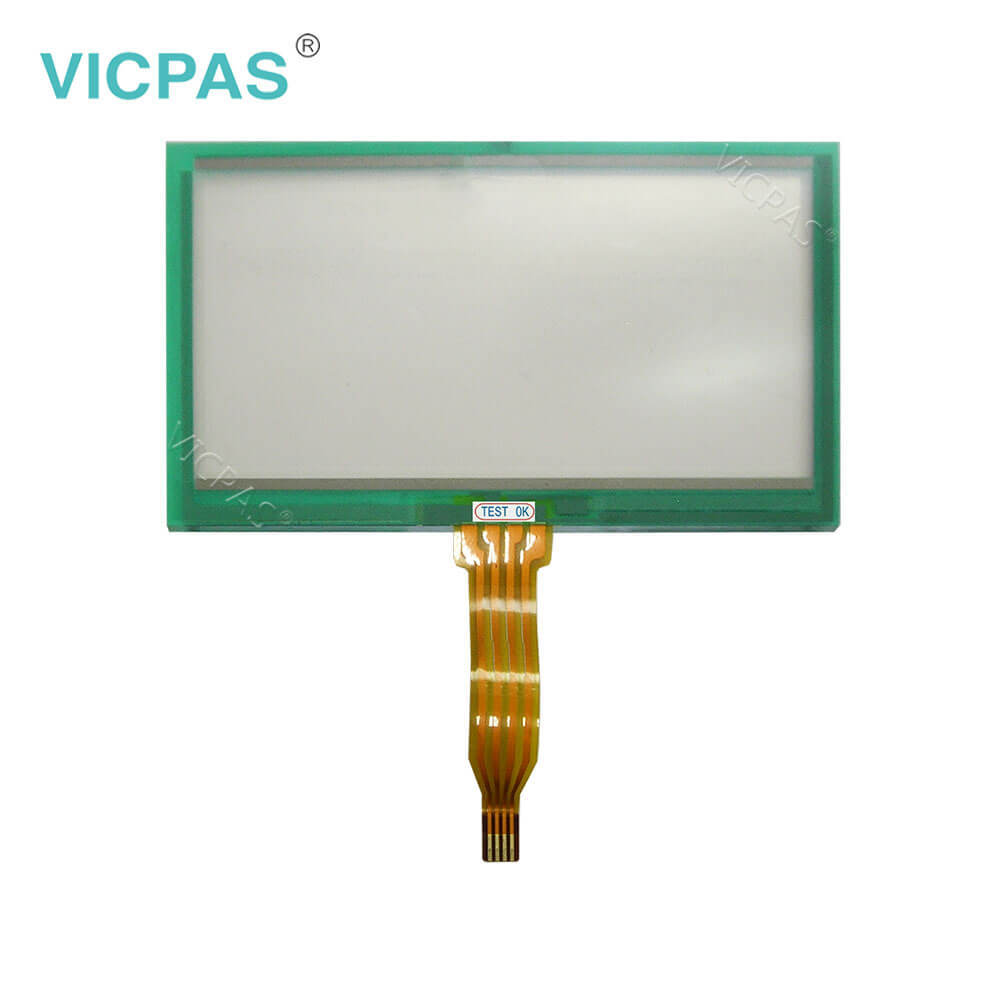

NV3W-MR20 Omron NV3W Series HMI Touch Panel Repair

categories	Omron NV Series HMI
Brand	OMRON
Model	NV3W-MR20
Warranty	365 Days
Product Line	Omron NV3W Series
Supply	Omron NV3W Repair Kit
FOB port	Guangzhou, Shenzhen, Hongkong
Terms of Payment	Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Update Time	2026-02-04 02:21:46

{{item.condition_name}}

SKU {{item.sku}}

{{item.symbol}} {{item.price}}

Wholesale Price

Request a Quote

Leading Time{{selectedConditionObj.leading}}

{{nameObj.name}}{{nameObj.selectedValue}}

Shipping

Detail Information

Contact Best Price

Specifications:

Part Number :	NV3W-MR20
Resolution:	128×64
Size:	3.1"
Warranty:	365 Days
Product Line:	Omron NV3W Series

Contrast Ratio:	3：1
Communications:	RS-232C
Service Life:	40,000 hours
Design software:	NV-Designer Ver. 2.0
Display Device:	STN LCD

Related BB Teach Pendant Part No.:

NV3W-MR20	Description	Inventory status
NV3W-MG20L	Omron NV3W series HMI	In Stock
NV3W-MG20	Omron NV3W series HMI	In Stock
NV3W-MR20	Omron NV3W series HMI	Available Now
NV3W-MR40	Omron NV3W series HMI	In Stock
NV3W-MG20L-CH	Omron NV3W series HMI	Available Now
NV3W-MG20-CH	Omron NV3W series HMI	Available Now
NV3W-MG40-CH	Omron NV3W series HMI	Available Now
NV3W-MR20L-CH	Omron NV3W series HMI	In Stock
NV3W-MR20-CH	Omron NV3W series HMI	Available Now
NV3W-MR40-CH	Omron NV3W series HMI	Available Now

NV3W-MR20 Omron NV3W Series HMI Touch Panel Repair PDF Download:

NV3W-MR20 Omron NV3W series datasheet pdf

Omron NV3W series HMI touch panel manual

FAQ:

Question: What is the dimension of NV3W-MR20 Omron Touch Panel?

Answer: The Touch Screen is 3.1 inch.

Question: What are the precautions for safe use?

Answer: 1. When unpacking the Units, check carefully for any external scratches or other damage.Also, shake the Units gently and check for any abnormal sound.2. The PT must be installed in a control panel.3. The mounting panel must be between 1.6 and 4.8 mm thick. Tighten the MountingBrackets evenly to a torque of between 0.1 and 0.25 N·m for the NV3W/NV3Q and between0.2 and 0.3 N·m for the NV4W to maintain water and dust resistance. Make surethe panel is not dirty or warped and that it is strong enough to hold the Units.4. Do not let metal particles enter the Units when preparing the panel.5. Do not connect an AC power supply to the DC power terminals.6. Do not perform a dielectric voltage test.7. Use a DC power supply that will provide a stable output even if the input is momentarilyinterrupted for 10 ms, and which has reinforced or double insulation.

Question: What is the NV3W-MR20 touchscreen, memebrane keyboard ,diplay and other HMI parts price?

Answer: Submit a fast quote, send Kernfix an email for best price.

Common misspellings:

N3W-MR20

NVW-MR20

NV3-MR20

NV3WMR20

NV3W-R20
