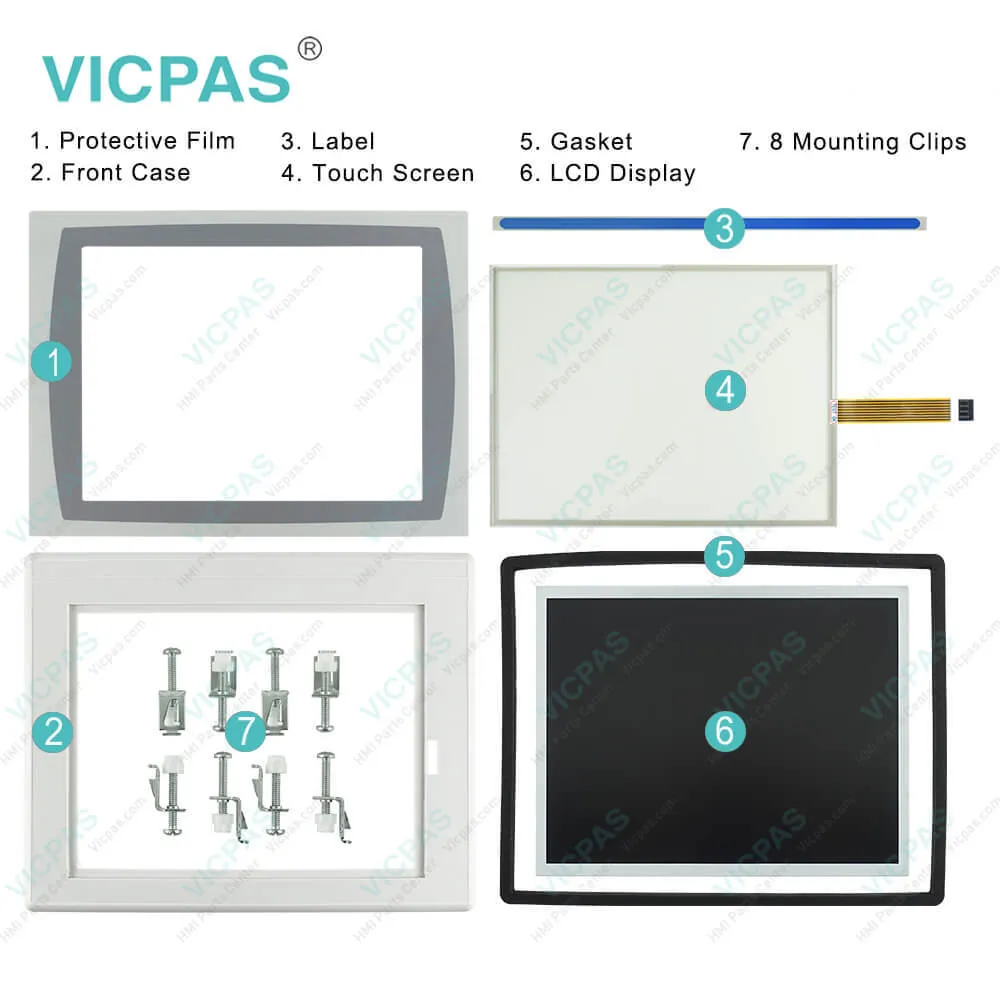

2711P-B15C4D9 Touchscreen 2711P-B15C4D9 Keypad Switch

FAQ:

Question: How to isolate problems with the 2711P-B15C4D9 Touch Screen?

Answer: • Check the catalog number of the unit. Verify that your terminal has a touch screen by looking at the label on the Display Module.• Perform a calibration of the touch screen. From Configuration Mode, open Terminal Settings>Input Devices>Touch Screen>Calibration. Follow the directions. The calibration requires 4 user screen touches. When the touches do not converge to a satisfactory calibration, you are asked repeatedly for additional screen touches and the calibration process never terminates. A touch screen that does not calibrate is not present or not functioning properly. Replace the bezel or the Display Module.• Check the Cursor Enable setting for the touch screen. Is the cursor visible? From Configuration Mode, open Terminal Settings>Input Devices>Touch Screen>Cursor.• Check the pointer input by attaching a USB mouse. If the mouse works, but the touch screen does not, then the touch driver or touch screen is not functioning properly. If both the mouse andtouchscreencreen are not working, then it is an application problem.• Does touching or dragging on the screen appear to work? If yes, even if incorrectly, the touch screen is present and working but requires calibration.• Replace Bezel or Display Module if all other attempts do not resolve the problem. If replacing the Display Module or bezel corrects the problem, then the touch screen was not functioning properly.

Question: What tools are required for panel 2711P-B15C4D9 installation?

Answer: • Panel cutout tools.• Small, slotted screwdriver.• Torque wrench (lb•in) for tightening the mounting clips on the PanelView Plus 700 to 1500 and PanelView Plus CE terminals.

Question: How to edit PanelView Plus 6 2711P-B15C4D9 communication settings?

Answer:
