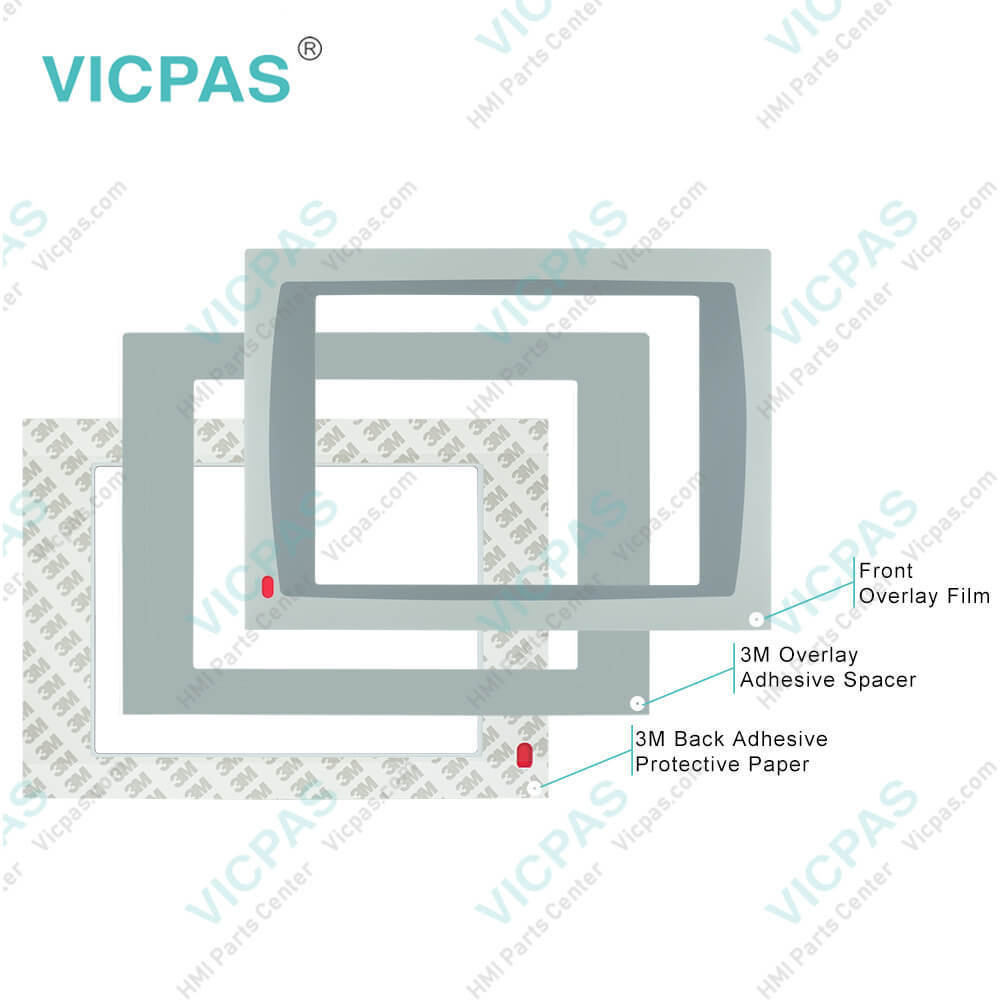

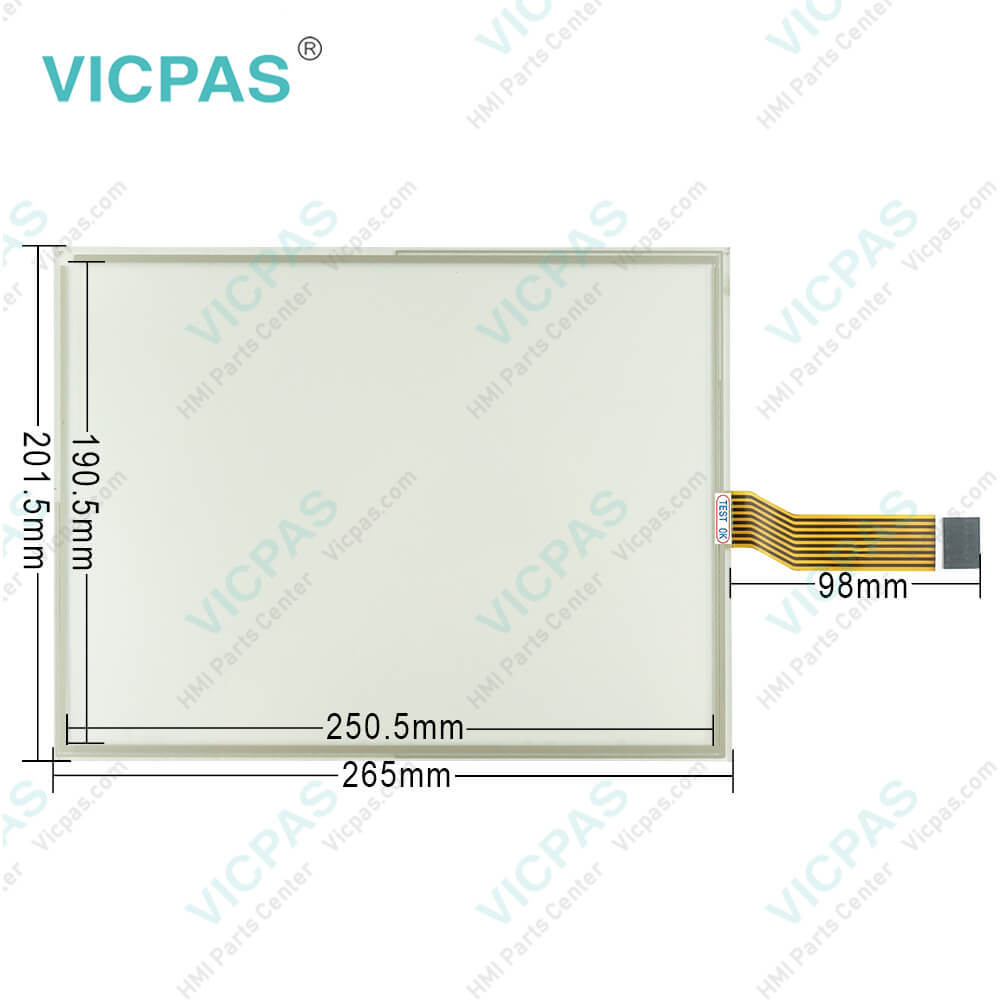

2711P-T12C4D8K Touch Screen Panel Glass

FAQ:

Question: How to delete 2711P-T12C4D8K Files?

Answer: From the Delete Files screen you can select options to:• Delete Applications - deletes an .MER application file from a storage location.• Delete Fonts - deletes a font file from a storage location.• Delete Log Files - deletes any data log files, alarm history files and alarm status files in the System Default location on the PanelView Plus terminal.

Question: How to replace 2711P-T12C4D8K Display Module Bezel?

Answer: 1. Make sure new bezel is free of lint and marks before attaching.2. Attach the following connectors. The number of connectors varies by model.• IrDa connector• Function Key connector3. Place the back of the Display Module over the new bezel. Be careful not to pinch any of the cables.Allow the Touch Screen connector to extend out of the access opening.4. Attach Touch Screen connector.5. Replace the sealing gasket.6. Attach screws that secure Display Module to bezel and tighten to a torque of 1.35 - 1.58 N•m (12-14 in-lb).7. On touch screen terminals, re-attach the small metal plate to the back of the Display Module using 2 screws.

Question: How to edit the 2711P-T12C4D8K device address of the logic controller?

Answer: 1. From the RSLinx Configuration screen, select a device node.2. Select the Edit Device button.A screen opens showing the name of the device and its current node address.3. To modify the device address, press the Device Address button.The Input Panel opens showing the current address.4. Using the Input Panel, modify the address and then select the Enter button.

Question: How to upgrade Allen Bradley Panelview Plus 6 firmware?

Answer: Application firmware can be downloaded using an Ethernet or serial connection from a desktop computer running the Firmware Upgrade Wizard. This wizard is available from the customer support website.
