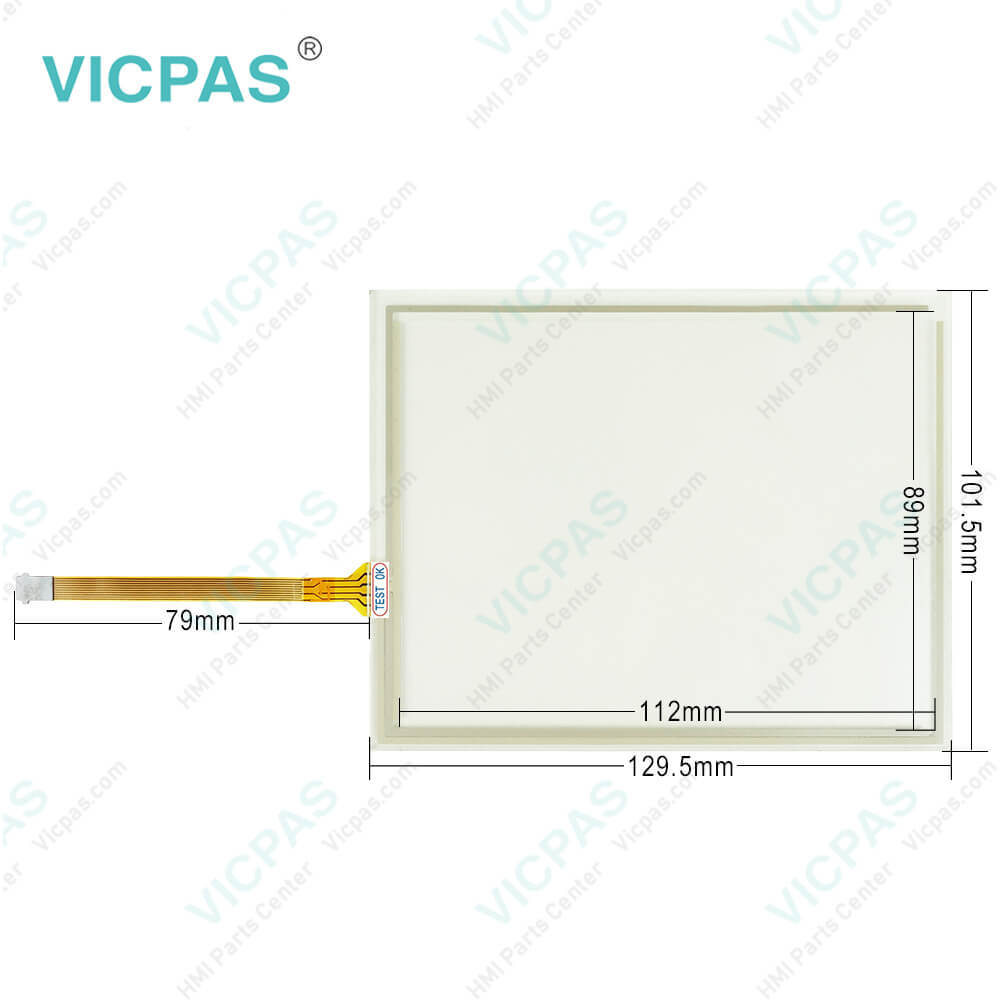

2711PC-T6C20D8 PanelView Plus 6 Compact Touch Panel

categories	PanelView Plus 6 Compact
Model	2711PC-T6C20D8
Warranty	365 Days
Product Line	PanelView Plus 6 Compact
Supply	PanelView Plus 6 Compact Touch Screen Panel Repair
Parts	2711PC-T6C20D8 Touch Screen Panel Glass
FOB port	Guangzhou, Shenzhen, Hongkong
Terms of Payment	Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Update Time	2026-02-09 16:38:52

{{item.condition_name}}

SKU {{item.sku}}

{{item.symbol}} {{item.price}}

Wholesale Price

Request a Quote

Leading Time{{selectedConditionObj.leading}}

{{nameObj.name}}{{nameObj.selectedValue}}

Shipping

Detail Information

Contact Best Price

Specifications:

Part Number :	2711PC-T6C20D8
Product Line:	PanelView Plus 6 Compact
Screen diagonal:	5.7 in
Warranty:	365 days Warranty
Input Power:	24 VDC

Software:	Panelbuilder 32
Mounting position:	vertical
Input Type:	Touchscreen
Communication:	Remote I/O and RS-232 Printer Port
Firmware:	4.00-4.48

Related BB Teach Pendant Part No.:

2711PC-T6C20D8	Description	Inventory status
2711PC-B4C20D	PanelView Plus 6 Compact Membrane Keypad Touch Screen Panel Glass	In Stock
2711PC-B4C20D8	AB PanelView Plus 6 Compact Membrane Keyboard Touch Panel Glass	Available Now
2711PC-B4C20D8-LR	Allen Bradley Panel Plus 6 Compact Keypad Touch Screen Panel	In Stock
2711PC-K4M20D	Allen Bradley Panel View Plus 6 Compact Membrane Keypad Keyboard	In Stock
2711PC-K4M20D8	PanelView Plus 6 Compact HMI Terminals Keyboard Membrane	In Stock

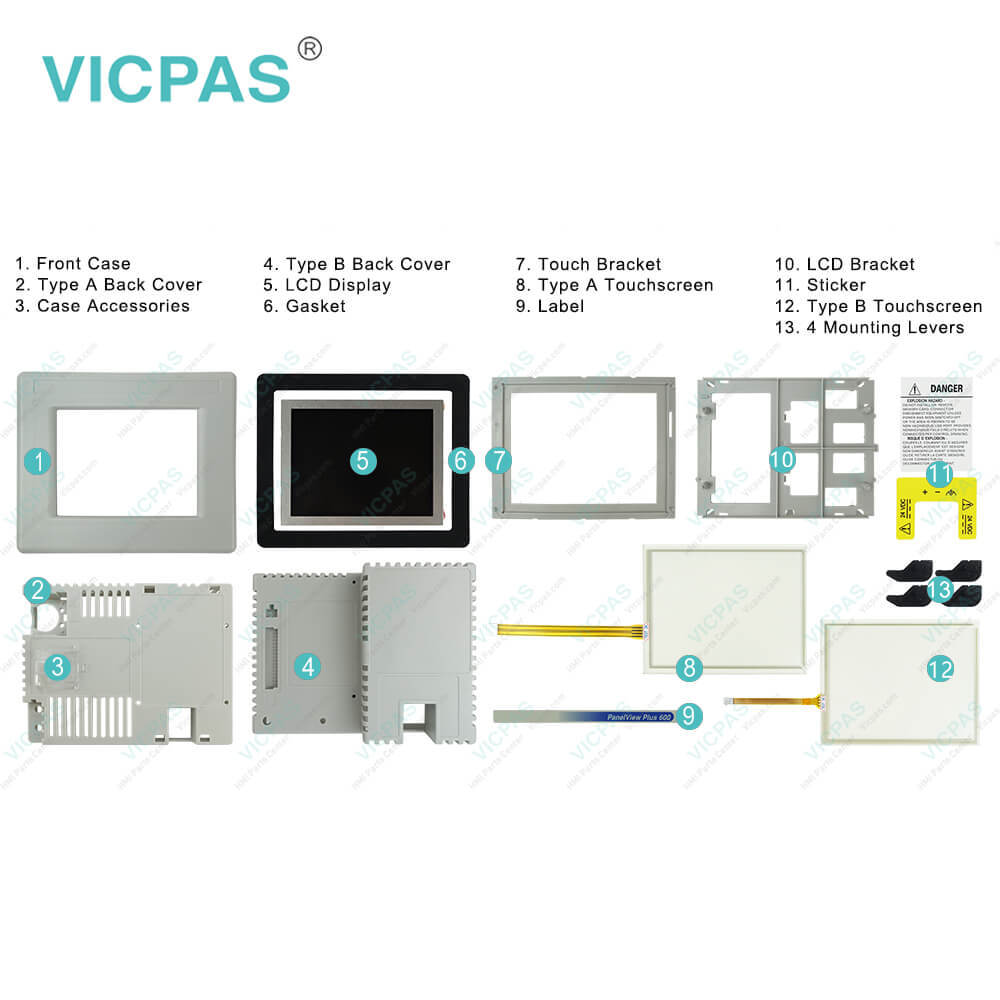

2711PC-T6C20D	PanelView Plus 6 Compact Touch Panel LCD Display Plastic Case	In Stock
2711PC-T6C20D8	PanelView Plus 6 Compact HMI Touch Screen LCD Display Plastic Shell	Available Now
2711PC-T6M20D	Allen Bradley PanelView Plus 6 Compact Front Overlay Touch Screen Housing	In Stock
2711PC-T6M20D8	PanelView Plus 6 Compact Touch Panel LCD Screen Plastic Case	Available Now
2711PC-T10C4D1	PanelView Plus 6 Compact HMI Panel Glass Protective Film Housing	In Stock
2711PC-T10C4D8	PanelView Plus 6 Compact Touch Screen Front Overlay Plastic Shell	In Stock

2711PC-T6C20D8 PanelView Plus 6 Compact Touch Panel PDF Download:

PanelView Plus 6 Compact

PanelView Plus to PanelView Plus 6 Catalog Number Conversions

Allen Bradley PanelView Plus Compact Terminals

Allen Bradley PanelView Plus 6 Compact 2711PC-T6C20D8 Terminals Mauals

PanelView Plus 6 2711PC-T6C20D8 Compact Terminals Technical Data

PanelView Plus 6 Compact 2711PC-T6C20D8 Terminals User Manual

Allen Bradley PanelView Plus 6 Compact Terminals

FAQ:

Question: How to connect the PanelView Plus 6 Compact terminal to DC power?

Answer: 1. Verify that the terminal is not connected to a power source.2. Strip 7 mm (0.28 in.) of insulation from the ends of the wires.3. Secure the DC power wires to the marked terminals (+ and –) on the power terminal block.4. Secure the earth/ground wire:• On 400 and 600 terminals, secure the earth/ground wire to the functional earth/ground terminal on the power terminal block.• On 1000 terminals, secure the earth/ground wire to the functional earth screw on the back of the display. 5. Apply power to the terminal.

Question: What type of display does the Allen Bradley Panelview Plus 6 Compact 2711PC-T6C20D8 have?

Answer: The 2711PC-T6C20D8 touchscreen has a multicolor LCD as its display type.

Question: What is the input type of PanelView Plus 6 Compact 2711PC-T6C20D8?

Answer: The input type of 2711PC-T6C20D8 is a touchscreen. The touchscreen of PanelView Plus 6 Compact is a color display that offers an analog resistive touch screen for touch input.

Question: How to restart the 2711PC-T6C20D8 system from the Windows desktop?

Answer: 1. From the Start menu, choose Programs>Restart System.You are asked to confirm the restart.2. Click Yes to restart or No to cancel.

Question: What is the 2711PC-T6C20D8 PanelView Plus 6 Compact touch screen panel price?

Answer: Submit a fast quote, send Kernfix an email for best price.
