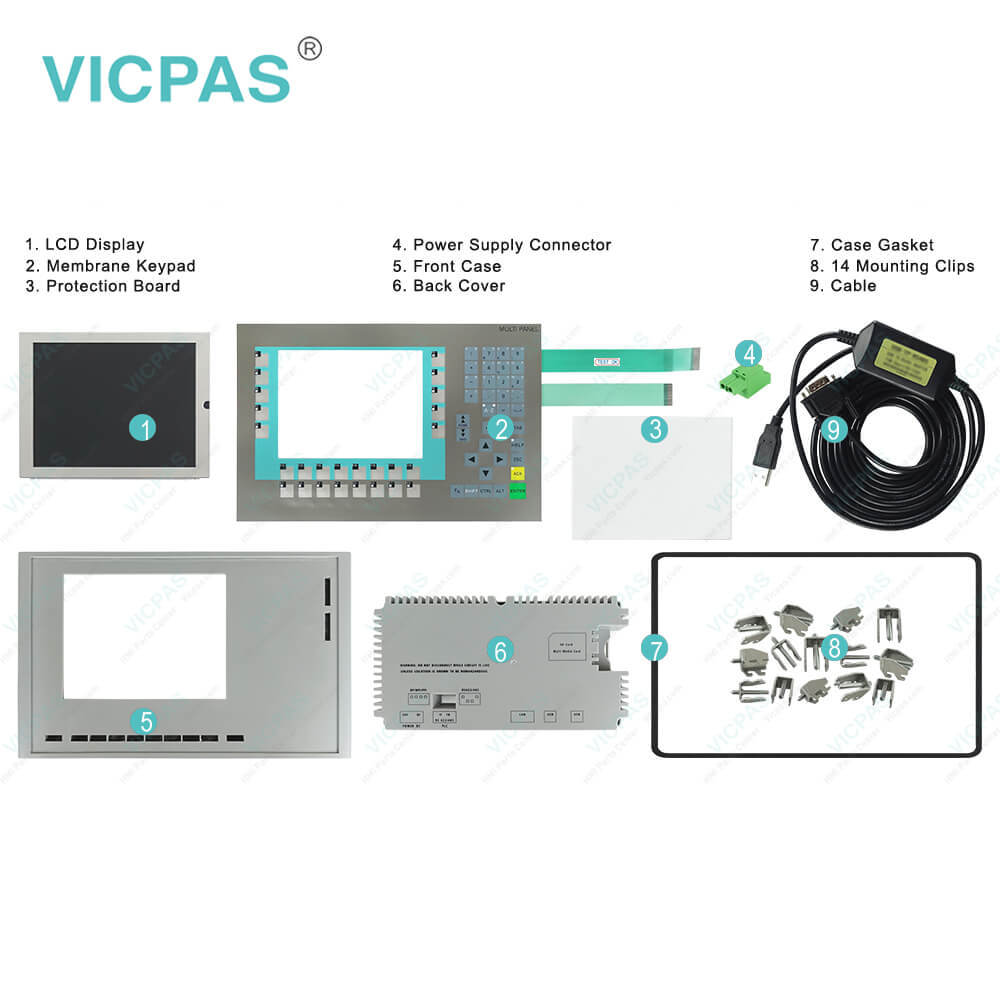

6AV6643-0DB01-1AX5 SIMATIC MP 277 8" Membrane Keypad Switch

categories	Simatic Multi Panel Series
Brand	SIEMENS
Model	6AV6643-0DB01-1AX5
Warranty	365 Days
Product Line	MP 277 8
Supply	Siemens MP277 8 HMI Touch Screen Keypad
Terms of Payment	Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Update Time	2026-01-30 20:32:16

{{item.condition_name}}

SKU {{item.sku}}

{{item.symbol}} {{item.price}}

Wholesale Price

Request a Quote

Leading Time{{selectedConditionObj.leading}}

{{nameObj.name}}{{nameObj.selectedValue}}

Shipping

Detail Information

Contact Best Price

Specifications:

Part Number :	6AV6643-0DB01-1AX5
Screen diagonal:	8.4 in
Design of display:	TFT
Warranty:	365 days Warranty
Product Line:	Siemens MP277 8

Function keys:	26 function keys
MTBF backlighting (at 25 °C):	50 000 h
Membrane keyboard:	Yes
Mounting position:	vertical
Type of Supply Voltage:	DC

Related BB Teach Pendant Part No.:

6AV6643-0DB01-1AX5	Description	Inventory status
6AV6643-0DB01-1AX0	SIMATIC MP 277 8" KEY	In Stock
6AV6643-0DB01-1AX1	SIMATIC MP 277 8" KEY	Available Now
6AV6643-0DB01-1AX2	MP 277 8" KEY SMALL FRAME	Available Now
6AV6643-0DB01-1AX5	MP 277 8" KEY	In Stock
6AV6652-3LC01-1AA0	Siemens MP277-8 KEY	Available Now

6AV6643-0DB01-1AX5 SIMATIC MP 277 8" Membrane Keypad Switch PDF Download:

Simatic Multi Panel

Siemens HMI MP277 8 6AV6643-0DB01-1AX5 Operating Instructions

Siemens Simatic MP277 Panel manual

Siemens Simatic MP277-8 Touch manual

FAQ:

Question: How to set the MP277-8 6AV6643-0DB01-1AX5 device name of the HMI device?

Answer: 1. Enter the device name for the HMI device in the "Device name" text box. 2. Enter a description for the HMI device in the "Device description" text box. 3. Confirm your entries. The dialog box and the screen keyboard are closed. The device name for the HMI device is now set.

Question: How to setting the Siemens MP277-8 HMI 6AV6643-0DB01-1AX5's Date and Time?

Answer: 1. Select the appropriate time zone for the HMI device in the "Time Zone" selection box.2. Touch the "Apply" button to confirm your entry.The time of day shown in the "Current Time" field is adjusted correspondingly to the selected time zone.3. Set the date in the selection box.4. Set the current time of day in the "Current Time" text box.5. If you want to switch from standard time to daylight saving time, select the "Daylight saving time currently in effect" check box.When you press the "Apply" button, the time is brought forward by one hour.6. If you want to switch from daylight saving time to standard time, deactivate the "Daylight saving time currently in effect" check box.When you press the "Apply" button, the time is brought back by one hour.7. Confirm your entries.The dialog box closes.The settings for the date and time of day have now been changed.

Question: What is the dimension of Siemens MP277 8 6AV6643-0DB01-1AX5 membrane keypad?

Answer: The Siemens MP277 8 membrane keypboard keypad is 8.4-inch. It is 153.7 millimeter long and 115.8 millimeters wide.

Question: What is the MP277 KEY 6AV6643-0DB01-1AX5 Siemens MP277-8 HMI parts price?

Answer: Submit a fast quote, send Kernfix an email for best price.
