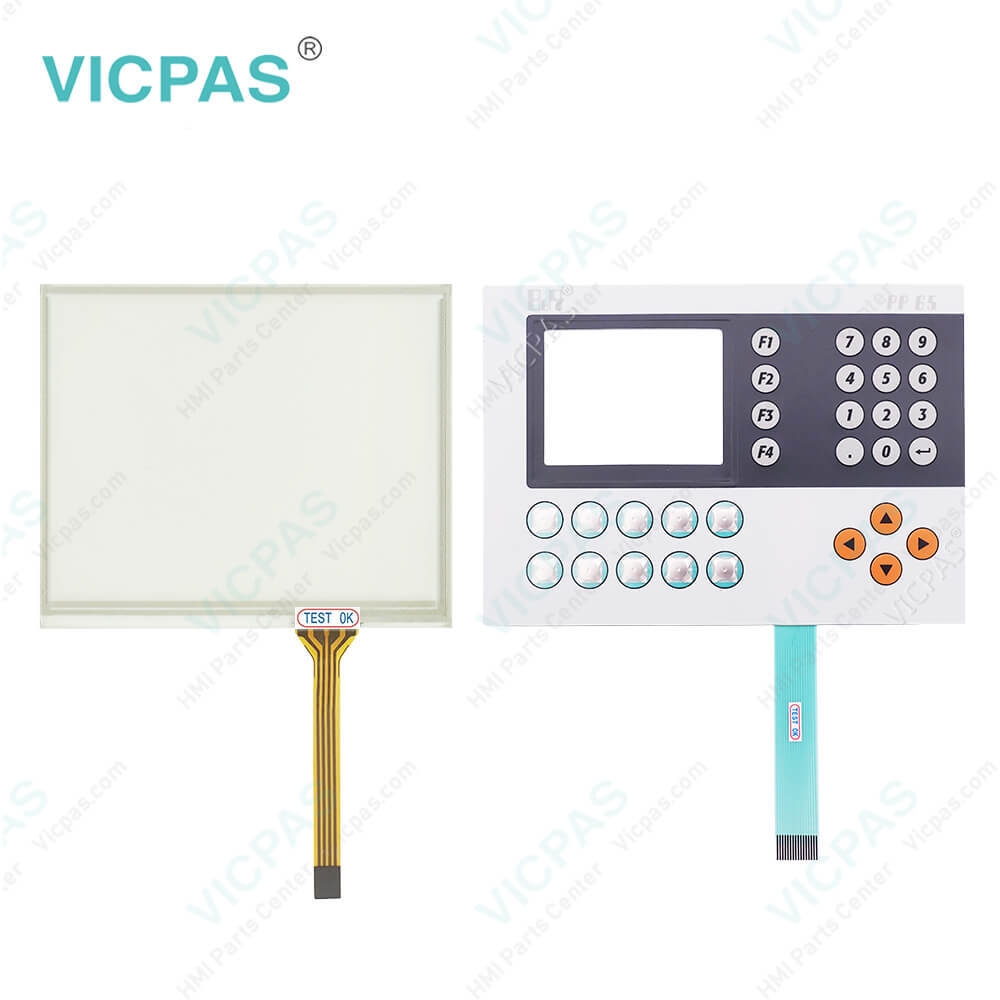

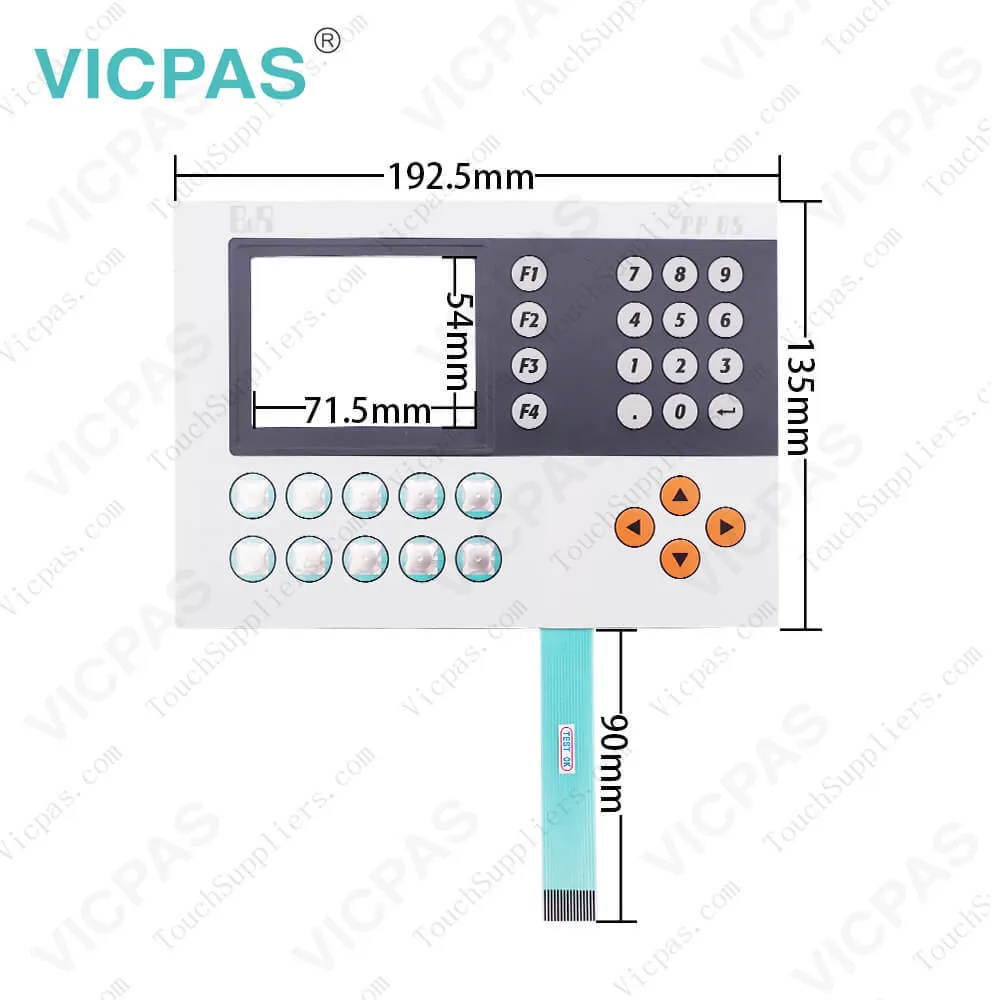

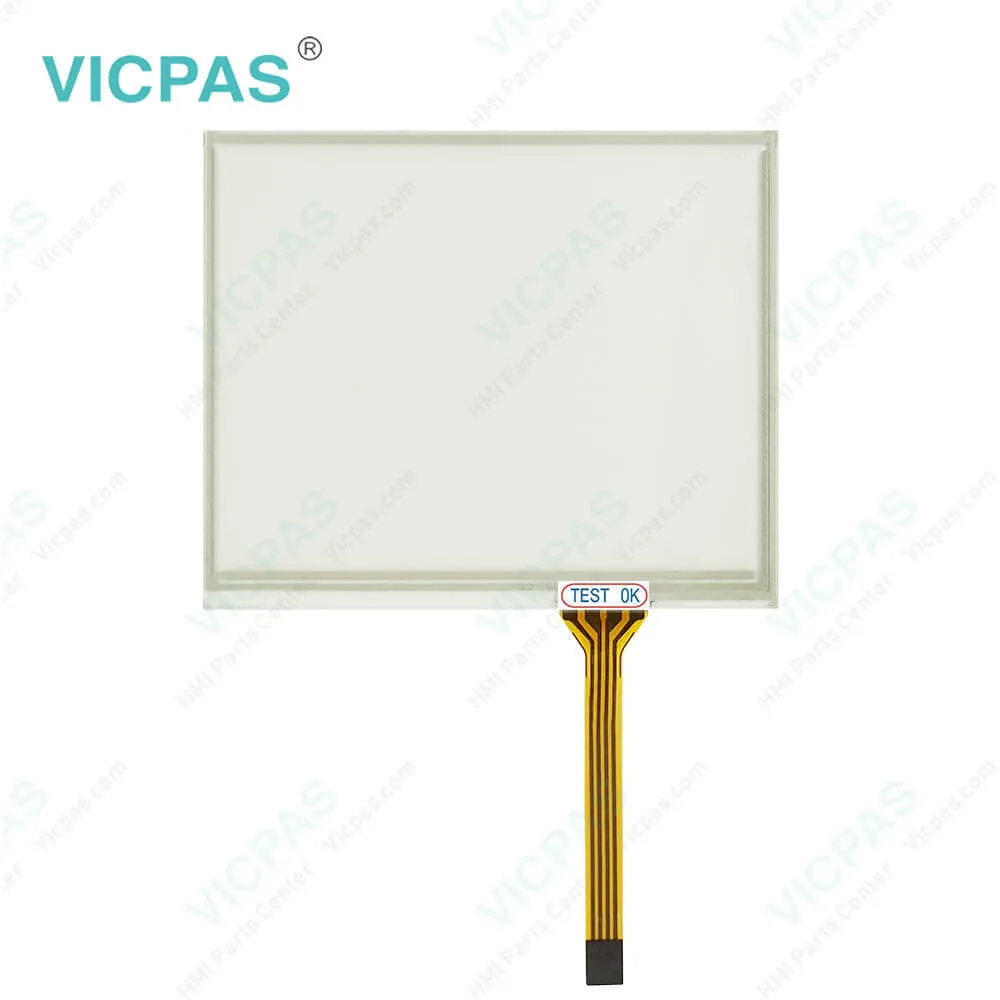

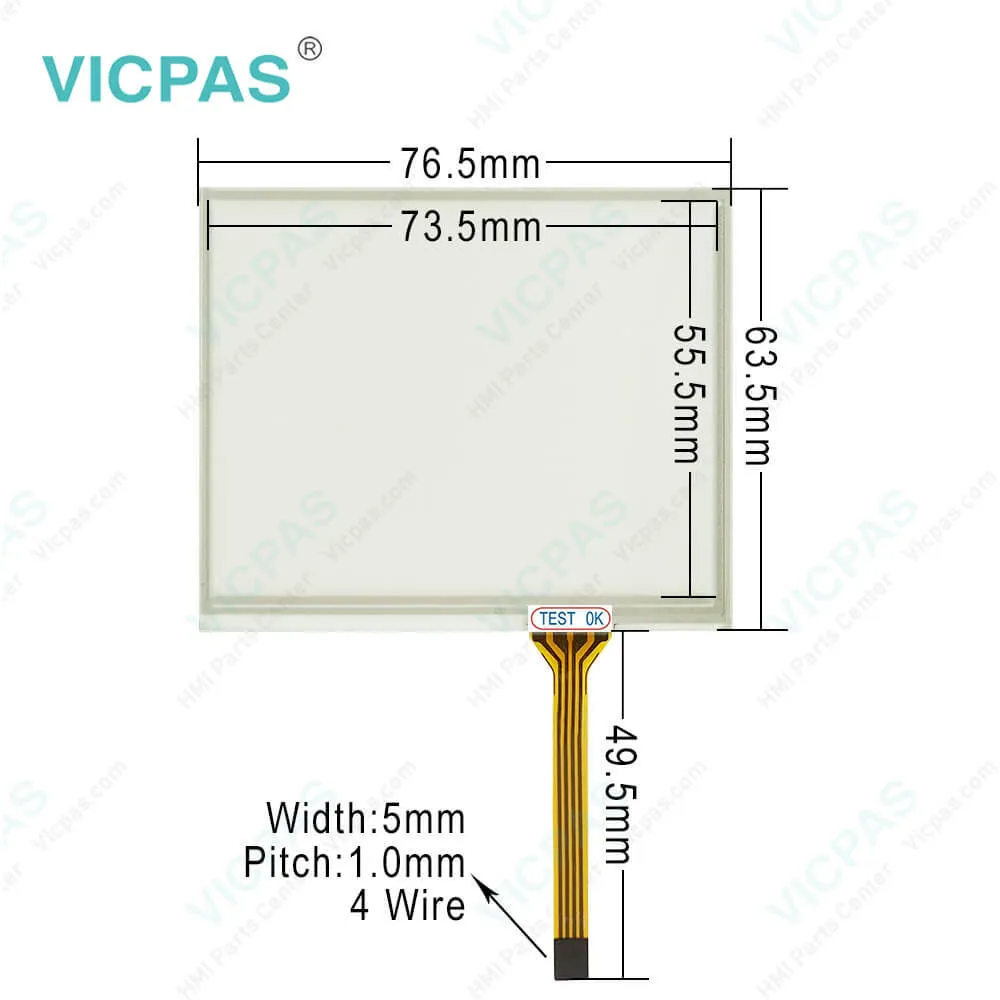

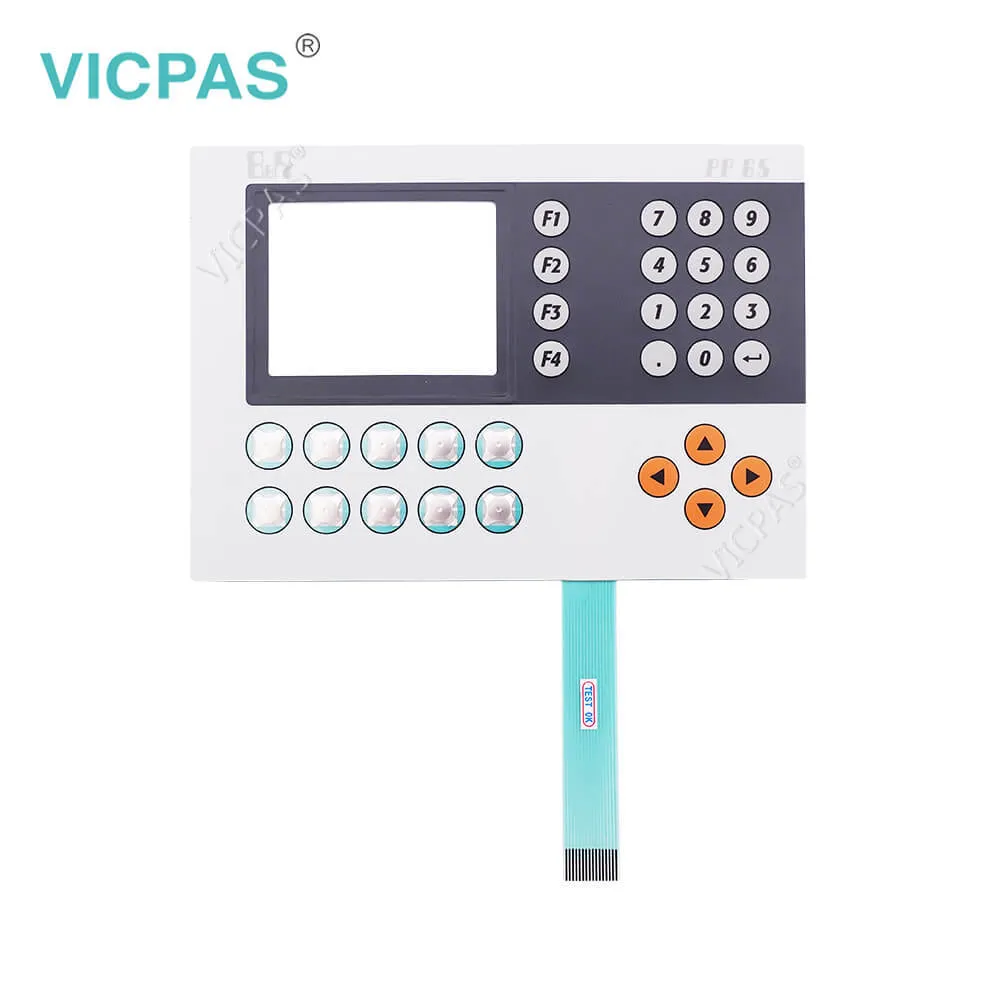

B&R PP65 4PP065.0351-K01 Keypad Touchscreen Repair

categories	Power Panel PP65
Brand	B&R
Model	B&R Power Panel 65 4PP065.0351-K01
Warranty	1 Year VICPAS Warranty
Shipping	DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
FOB port	Guangzhou, Shenzhen, Hongkong
Terms of Payment	Western Union, T/T, PayPal, Credit Card
Update Time	2026-02-09 17:34:51

{{item.condition_name}}

SKU {{item.sku}}

{{item.symbol}} {{item.price}}

Wholesale Price

Request a Quote

Leading Time{{selectedConditionObj.leading}}

{{nameObj.name}}{{nameObj.selectedValue}}

Shipping

Detail Information

Contact Best Price

Specifications:

Part Number :	4PP065.0351-K01
Product Line:	Power Panel 65
Screen diagonal:	3.5 in
Warranty:	365 days Warranty
Input Power:	24 VDC

Display Type:	TFT color
Mounting position:	vertical
Input Type:	Touchscreen/Keypad
Function keys:	14 (with slide-in labels)
Storage:	-20 to 70°C

B&R PP65 4PP065.0351-K01 Keypad Touchscreen Repair PDF Download:

Power Panel 65

B&R Power Panel 65 User's Manual

FAQ:

Question: How to removing the Power Panel 65 4PP065.0351-K01 CompactFlash card?

Answer: Rotate the orange CompactFlash safety latch away from the CompactFlash slot (1). Then press the CompactFlash ejection lever (2) with a screwdriver until the CompactFlash card is ejected. The CompactFlash card can now be removed by hand (3).

Question: How to install the B and R PP65 4PP065.0351-K01 interface modules?

Answer: 1) Remove the screws from the cover.2) Remove the cover.3) Insert the interface module into the PP65.4) Apply light pressure until the interface module is inserted all the way.5) Secure the interface module with the screws (max. 0.6 Nm).

Question: How can B and R Power Panel 65 4PP065.0351-K01 screen burn-in be avoided?

Answer: There is no perfect solution. There are ways to significantly reduce this effect, however:• Avoid static images or screen content.• Use screensavers (animated) if the display is not in use.• Frequent picture change• Turn off the display when not in use.Turning off the backlight does not help prevent screen burn-in.
