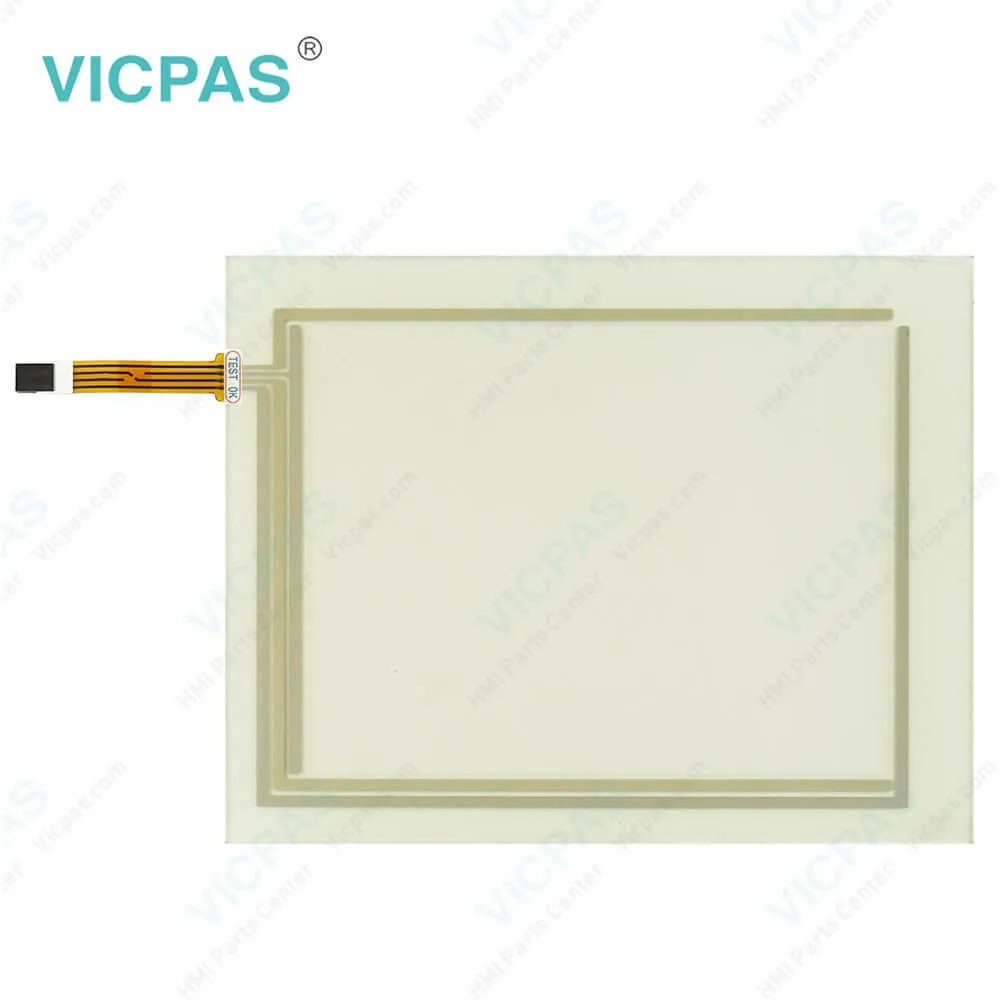

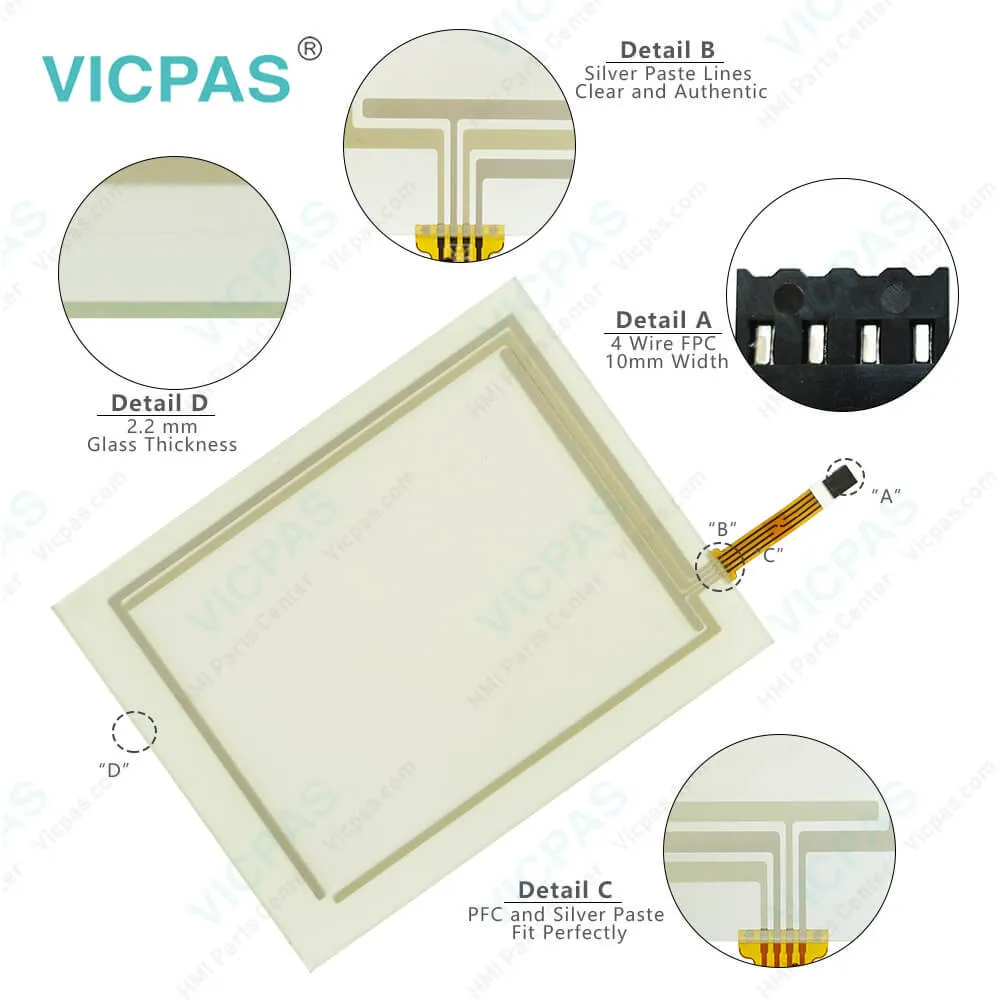

ESA Terminals HMI HCJ 015.8120.945.0 Touch Panel Repair

categories	VT Terminals HMI Series
Brand	ESA
Model	HCJ 015.8120.945.0
Warranty	365 Days
Product Line	Touch screen terminals
Supply	HCJ 015.8120.945.0 Touch Screen Glass
Terms of Payment	Western Union, T/T, PayPal, Credit Card
Update Time	2026-01-31 01:21:31

{{item.condition_name}}

SKU {{item.sku}}

{{item.symbol}} {{item.price}}

Wholesale Price

Request a Quote

Leading Time{{selectedConditionObj.leading}}

{{nameObj.name}}{{nameObj.selectedValue}}

Shipping

Detail Information

Contact Best Price

Specifications:

Brand:	ESA
Resolution:	640x480
Backlight:	CCFL
Warranty:	6-Months Warranty
Product Line:	Touch Terminal

Display Type:	Graphic LCD TFT
Touch Screen Matrix:	40x30 (16x16)
Display area size:	8.30x6.20
Size:	10.4"
Part Number :	HCJ 015.8120.945.0

Related BB Teach Pendant Part No.:

HCJ 015.8120.945.0	Description	Inventory status
VT585WBPT00	ESA Terminals HMI VT585WBPT00 Touchscreen Replacement	In Stock
VT585W0PTCN	ESA Terminals HMI VT585W0PTCN Touch Panel Replacement	In Stock
VT585WBPTCN	ESA Terminals HMI VT585WBPTCN Touch Screen Replacement	In Stock
VT585WBPTDP	ESA Terminals HMI VT585W BPTDP Touch Screen Replacement	In Stock
VT585WBPTET	ESA Terminals HMI VT585W BPTET Touch Panel Replacement	In Stock
VT585CE0T100	ESA Terminals HMI VT585CE 0T100 Touchscreen Replacement	In Stock
VT585CE1T100	ESA Terminals HMI VT585CE1T100 Touch Panel Replacement	In Stock
VT580WAPT00	ESA Terminals HMI VT580W APT00 Protective Film Touch Panel	In Stock
VT585WAPS00	ESA Terminals HMI VT585W APS00 Touch Panel Protective Film	In Stock
VT585WBPT00N	ESA Terminals HMI VT585W BPT00N Touchscreen Overlay Repair	Available Now
VT585WBPT00N056	ESA Terminals VT585W BPT00N056 Protective Film Touch Screen	In Stock

ESA Terminals HMI HCJ 015.8120.945.0 Touch Panel Repair PDF Download:

VT Terminal

ESA VT Touchscreen Terminal datasheet pdf

FAQ:

Question: How to operate the HCJ 015.8120.945.0 Terminal with Front Overlay touchscreen?

Answer: To be able to carry out a change in any editable variable field you must touch the chosen field on the display and a page appears offering theneeded to modify the field.

Question: What is the HCJ 015.8120.945.0 Termination of CAN line?

Answer: The VT in question integratesthe termination resistances of the serial line (typically 120 ohms)which can be inserted by means of a jumper (preset on 1-2, line not terminated).To activate the termination:• Make sure the device is not connected to the power supply.• Remove the cover.• Identify the jumper unit J2.• Position the jumper between pins 2 and 3 (line terminated).• Replace the back cover.• Reconnect the power supply.

Question: What is ESA HCJ 015.8120.945.0 Touch Screen Panel HMI parts price?

Answer: Submit a fast quote, send Kernfix an email for best price.
