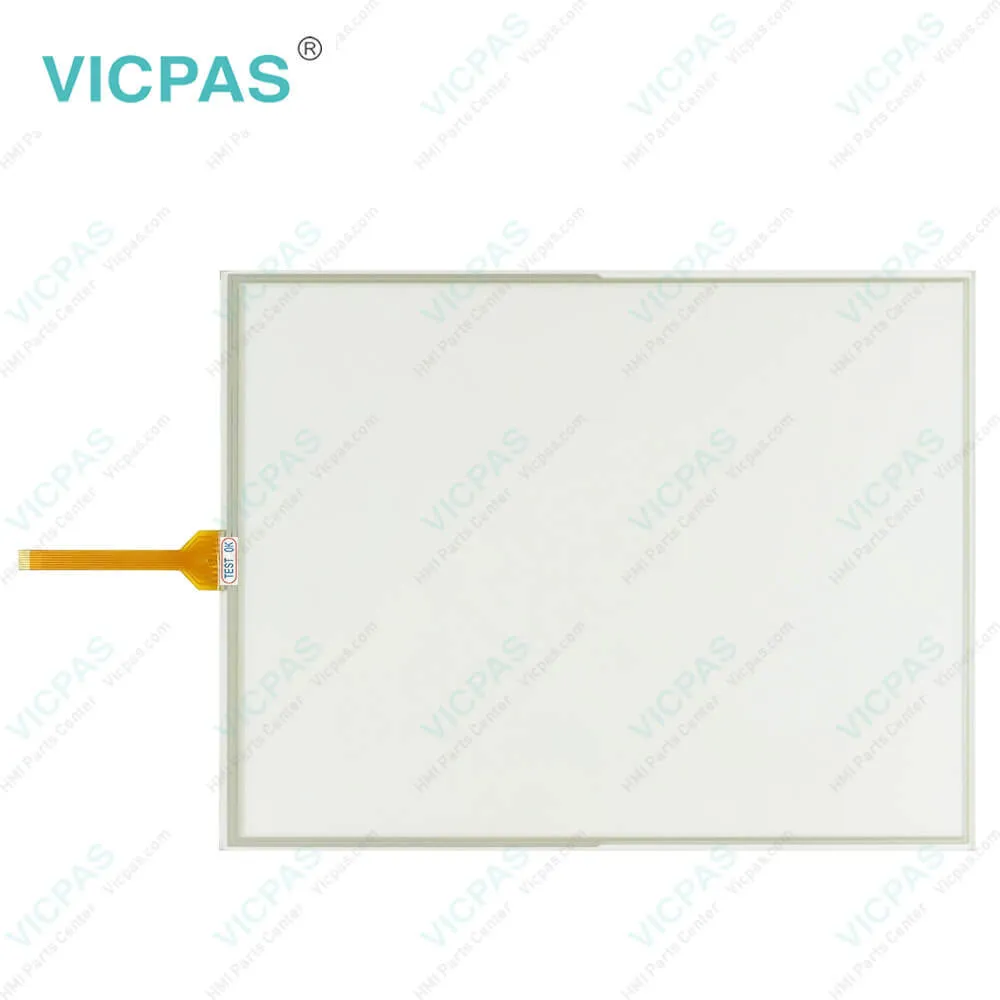

Touch screen panel for 100-1220 touch panel membrane touch sensor glass replacement repair

Touch screen panel for 100-1220 touch panel membrane touch sensor glass replacement repair
Touch screen panel for 100-1220 touch panel membrane touch sensor glass replacement repair
categories4-Wire Resistive
Model100-1220
Warranty365 Days
Supply100-1220 Touchscreen
Touch Screen Panel TypeResistance touch screen
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, T/T, PayPal, Credit Card
Update Time2026-01-31 01:52:58
Leading Time{{selectedConditionObj.leading}}
{{item.value}}
{{nameObj.name}}{{nameObj.selectedValue}}
{{valueObj.name}}

Shipping

Detail Information


  Contact Best Price

Specifications:

Part Number :100-1220
Number of Touches:Single
Pitch:1.0 mm
Warranty:365 days Warranty
Light Transmittance:80% ± 3%
Resolution:1280 x 1024
Surface Hardness:≧ 3H
Response Time:≦ 20ms
Operation Temperature:-10～+60°C
Storage Temperature:-20～+70°C


Related BB Teach Pendant Part No.:

100-1220Description Inventory status
100-0760Gunze 4-Wire resistive Touch Screen Glass ReplacementIn Stock
100-1120GUNZE 4-Wire resistive Touchscreen Panel ReplacementAvailable Now
100-1130Gunze Analog Resistive 4-Wire HMI Panel Glass Repair PartAvailable Now
100-1131Gunze Analog Resistive 4-Wire HMI Touchscreen Repair PartIn Stock
100-1180GUNZE 4-Wire resistive HMI Touch Screen Glass RepairAvailable Now
100-1190GUNZE 4-Wire resistive Touch Screen Panel ReplacementIn Stock
100-1200Gunze Analog Resistive 4-Wire Touch Membrane ReplacementIn Stock
100-1220GUNZE Analog Resistive 4-Wire HMI Touch Glass ReplacementIn Stock
100-1361Gunze 4-Wire resistive HMI Panel Glass ReplacementAvailable Now
100-1380Gunze Analog Resistive 4-Wire Touch Digitizer Glass RepairAvailable Now
100-1420Gunze Analog Resistive 4-Wire Touch Screen Monitor RepairIn Stock
100-1430GUNZE 4-Wire resistive HMI Touch Panel ReplacementAvailable Now

Touch screen panel for 100-1220 touch panel membrane touch sensor glass replacement repair PDF Download:

  • 100-0760-Rev.-B-5.7D_4wire Drawing
  • 100-1130 Drawing
  • 100-1131-Rev.-0-8.4D_4wire-1 Drawing
  • 100-1180-Rev.-0-5.7_-4wire Drawing
  • 100-1190_(G104-01_Gunze_10.4D_4w_-FG) Drawing
  • 100-1200-Rev.-0-12.1D_4wire Drawing
  • 100-1220-Rev.-0-15.0D_4wire Drawing
  • 100-1361-Rev.-0-6.7D_-4wire Drawing
  • 100-1380-Rev.-0-3.8D_-4wire Drawing
  • 100-1420-Rev.-0-5.7D_4wire Drawing
  • Tough Touch Data Sheet
  • Low Reflective Data Sheet
  • High Transmissive Data Sheet
  • Film Glass Data Sheet

    • FAQ:

    Question: What is the minimum/maximum resistive touch screen size GUNZE can manufacture?

    Answer: In short, the minimum size manufactured to date is a 2.8”D. Maximum is a 22.0” D with special tooling requirements.

    Question: What is the Gunze 100-1220 HMI parts Touch Screen Panel Glass price?

    Answer: Submit a fast quote, send Kernfix an email for best price.


    Common misspellings:

    100-220

    10-01220

    100-1ZZ0

    1010-1220
