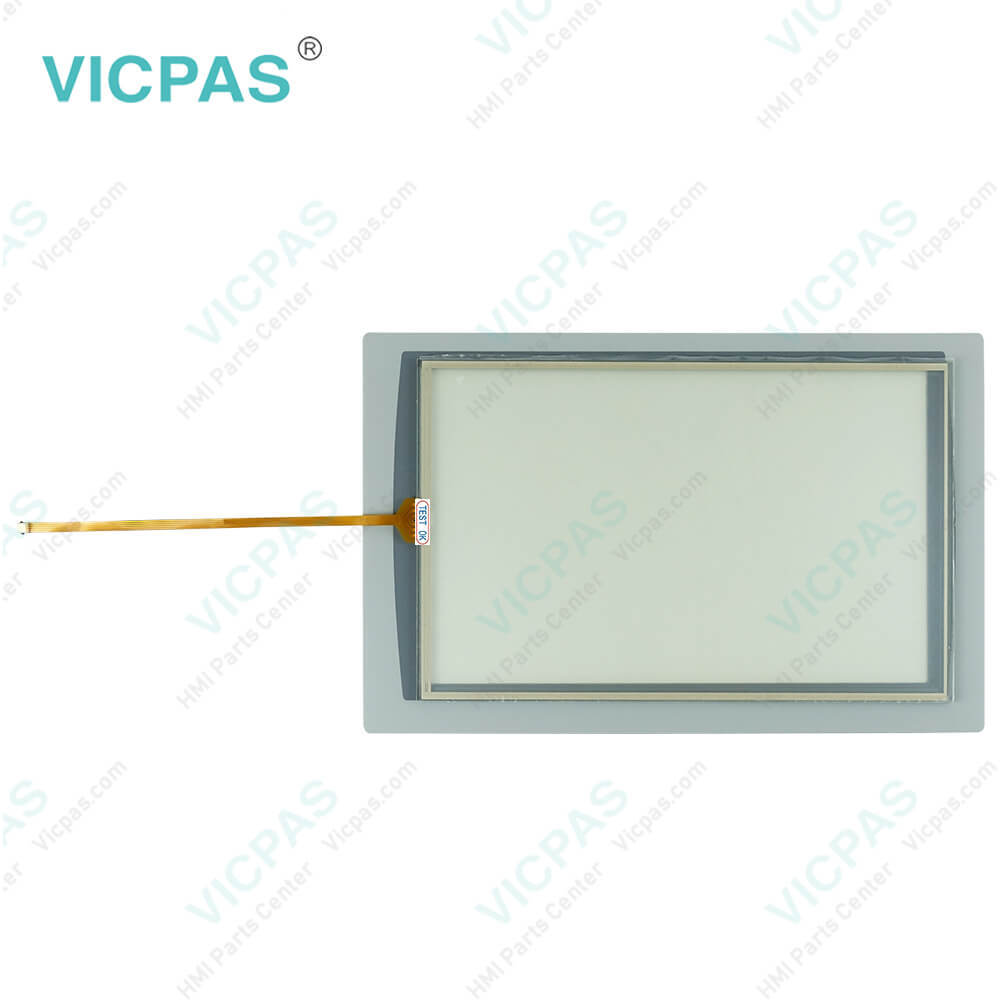

2711P-T12W22D9P-BM014 Panelview Plus 7 Touch Screen Panel

FAQ:

Question: How to enter characters in the display area above the 2711P-T12W22D9P-BM014 keyboard?

Answer: 1. Select a character on the keyboard. • On a touch screen terminal, touch a key. • On a keypad terminal, press the arrow keys to navigate to a key. 2. Press Select to copy the character to the display area. 3. Press Enter when done to exit the keyboard.

Question: How to enable Allen Bradley Plus 7 Performance Terminals desktop access?

Answer: 1. Press Terminal Settings, then choose Desktop Access Setup. 2. To select Allow, press Desktop Access. The Enter Password dialog box opens. Each time that you change desktop access from disallow to allow, you must enter a password. The default password is ‘password’. 3. To type the password, press Password. 4. Press Enter. 5. To return to Desktop Access Management, press Enter again. 6. Press OK to exit Desktop Access Management, then Close to exit terminal settings and return to the FactoryTalk View ME Station dialog box. 7. To access the desktop, press Exit. When desktop access is enabled, you are not required to enter a password.

Question: What are the tips of configuring the 2711P-T12W22D9P-BM014 Ethernet ports of the terminal?

Answer: 1. Press Terminal Settings, then choose Networks and Communications>Network Connections>Network Adapters. 2. To access the Ethernet link settings, press Settings. 3. To enable or disable the ports that you want to use for your network configuration, press Ethernet Link1 and Ethernet Link2.

Question: How to connect the operator terminal 2711P-T12W22D9P-BM014 to an AC power source?

Answer: 1. Verify that the wiring is not connected to a power source. 2. Strip 7 mm (0.28 in.) of insulation from the ends of the wire. 3. Secure the AC power wires to the marked terminals (L1 and L2N) on the terminal block.4. Secure the protective earth ground wire to the marked terminal on the terminal block. The protective earth terminal must be connected to a low-impedance earth ground.5. Apply power to the operator terminal.
