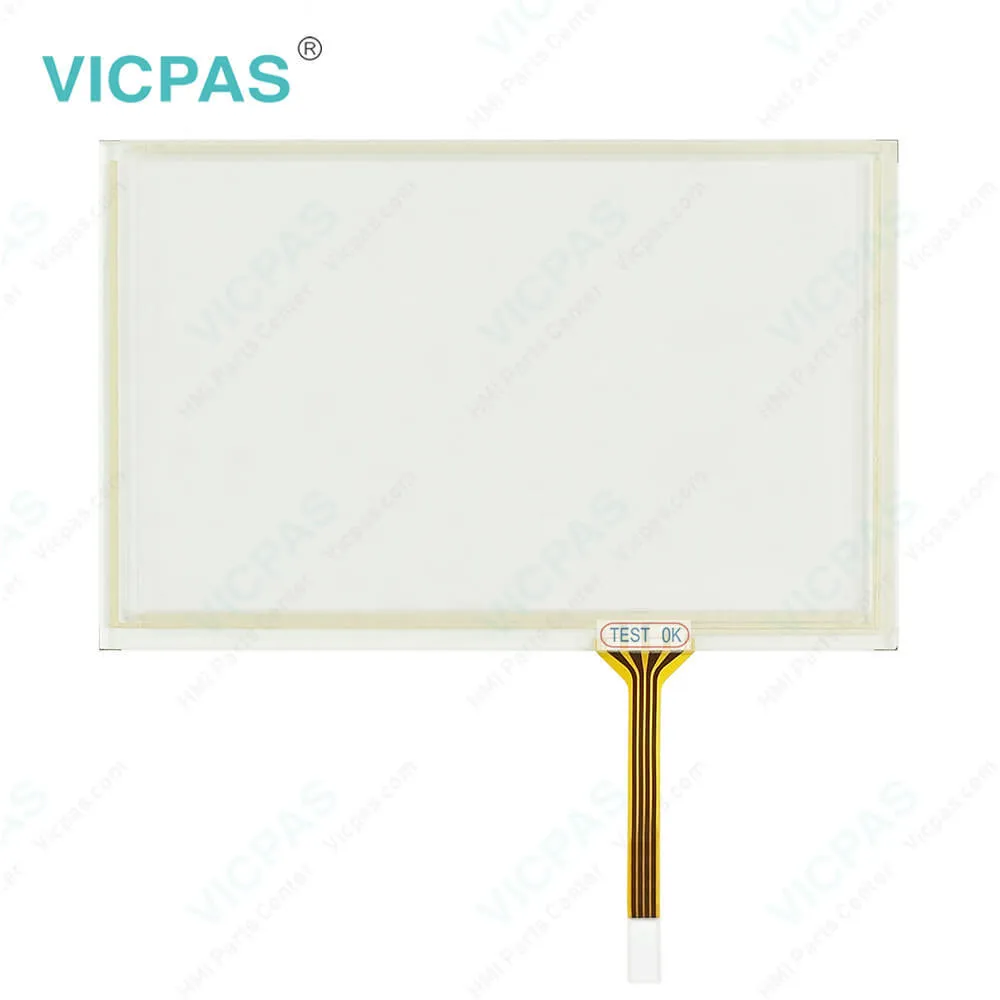

Beijer HMI iX T5F Touch Screen Front Overlay Replacement

categories	iX TxX Operator Panels
Brand	BEIJER
Model	iX T5F
Warranty	365 Days
Product Line	iX TxX
Supply	Beijer iX T5F Touchscreen Protective Film
FOB port	Guangzhou, Shenzhen, Hongkong
Terms of Payment	Western Union, T/T, PayPal, Credit Card
Update Time	2026-01-31 00:45:41

{{item.condition_name}}

SKU {{item.sku}}

{{item.symbol}} {{item.price}}

Wholesale Price

Request a Quote

Leading Time{{selectedConditionObj.leading}}

{{nameObj.name}}{{nameObj.selectedValue}}

Shipping

Detail Information

Contact Best Price

Specifications:

Brand:	Beijer
Part number:	iX T5F
Size:	5"
Warranty:	365 days Warranty
Power voltage:	+24 VDC

Size diagonal:	800x480 pixel
Display Type:	TFT-LCD
Touch Type:	Resistive
Backlight:	LED
Brightness:	300 cd/m2

Beijer HMI iX T5F Touch Screen Front Overlay Replacement PDF Download:

iX TxX Operator Panels

Beijer iX TxX Series Maintenance Manuals

Beijer iX T5F-2 HMI manual pdf

FAQ:

Question: How to ground the iX TxX Series Operator Panel?

Answer: 1. Connect a 2.5mm2 wire between the operator panel’s quick-connect plinth and the panel’s chassis, see 2 in drawing above.2. Connect a 6mm2 or 4mm2 wire or grounding braid between the operator panel’s chassis and the closest grounding point on the door, see 3 in drawing above. 3. Connect a strong but short grounding braid between the door and the devicecabinet, see 4 in drawing above.4. Twist the cables onto the 24VDCfeed, see 5 in drawing above. Minimumcross-section of the cable is 2.5mm2.2 turns around the ferrite core provide 4 times the suppression of 1 turn.3 turns around the ferrite core provide 9 times the suppression of 1 turn.

Question: Why the Beijer iX T5F HMI have the chemical resistance?

Answer: iX T5F covers the overlay surrounding the screen.

Question: What is Beijer iX T5F Touchscreen and Overlay HMI parts price?

Answer: Submit a fast quote, send Kernfix an email for best price.

Common misspellings:

5TF

75F

T55F
