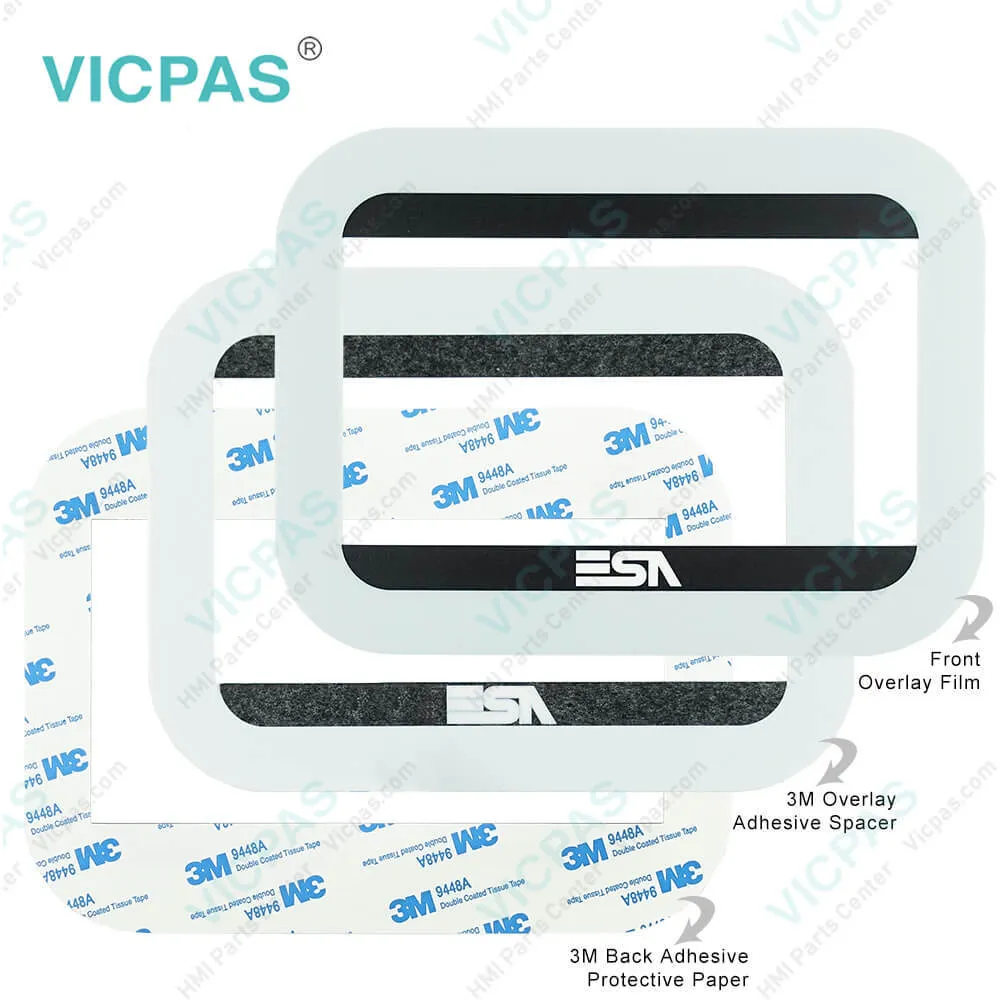

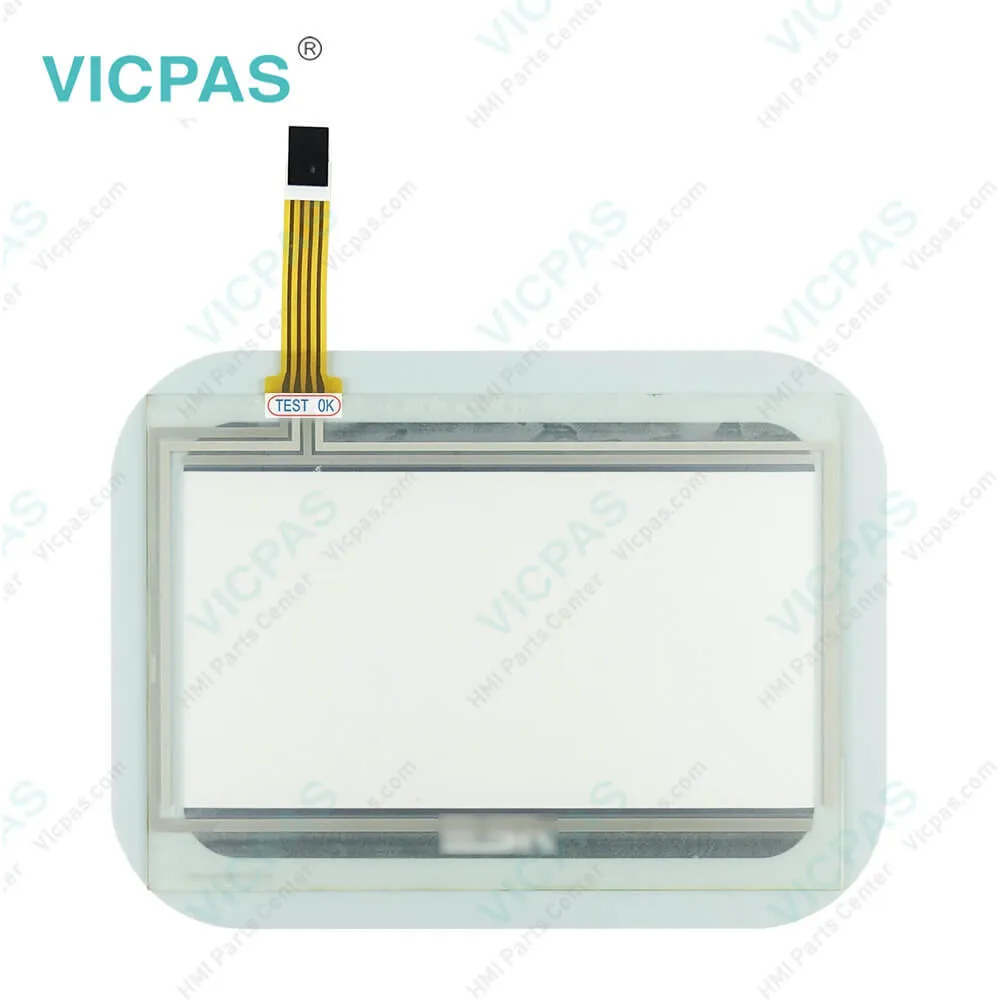

ESA Terminals HMI VT505H00000 Touch Screen Replacement

categories	VT Terminals HMI Series
Brand	ESA
Model	VT505H 00000
Warranty	365 Days
Product Line	Touch screen terminals
Supply	VT505H Touch Screen and Overlay
Terms of Payment	Western Union, T/T, PayPal, Credit Card
Update Time	2026-01-31 01:22:05

{{item.condition_name}}

SKU {{item.sku}}

{{item.symbol}} {{item.price}}

Wholesale Price

Request a Quote

Leading Time{{selectedConditionObj.leading}}

{{nameObj.name}}{{nameObj.selectedValue}}

Shipping

Detail Information

Contact Best Price

Specifications:

Brand:	ESA
Resolution:	320x240
Backlight:	CCFL
Warranty:	6-Months Warranty
Product Line:	Touch Terminal

Display Type:	Graphic LCD TFT
Touch Screen Matrix:	20x16 (16x15)
Display area size:	4.53x3.4
Size:	5.7"
Part Number :	VT505H00000

Related BB Teach Pendant Part No.:

VT505H 00000	Description	Inventory status
VT505H00000	ESA Terminals HMI VT505H00000 Touch Screen Replacement	In Stock
VT505H000CN	ESA Terminals HMI VT505H 000CN Touch Panel Replacement	In Stock

ESA Terminals HMI VT505H00000 Touch Screen Replacement PDF Download:

VT Terminal

ESA VT Touchscreen Terminal datasheet pdf

FAQ:

Question: How to operate the VT505H Terminal with front overlay touchscreen?

Answer: To be able to carry out a change in any editable variable field you musttouch the chosen field on the display and a page appears offering theneeded to modify the field.

Question: What is the VT505H Termination of CAN line?

Answer: The VT in question integratesthe termination resistances of the serial line (typically 120 ohms)which can be inserted by means of a jumper (preset on 1-2, line not terminated).To activate the termination:• Make sure the device is not connected to the power supply.• Remove the cover.• Identify the jumper unit J2.• Position the jumper between pins 2 and 3 (line terminated).• Replace the back cover.• Reconnect the power supply.

Question: What is ESA VT505H Touch Screen and Protective Film HMI parts price?

Answer: Submit a fast quote, send Kernfix an email for best price.
