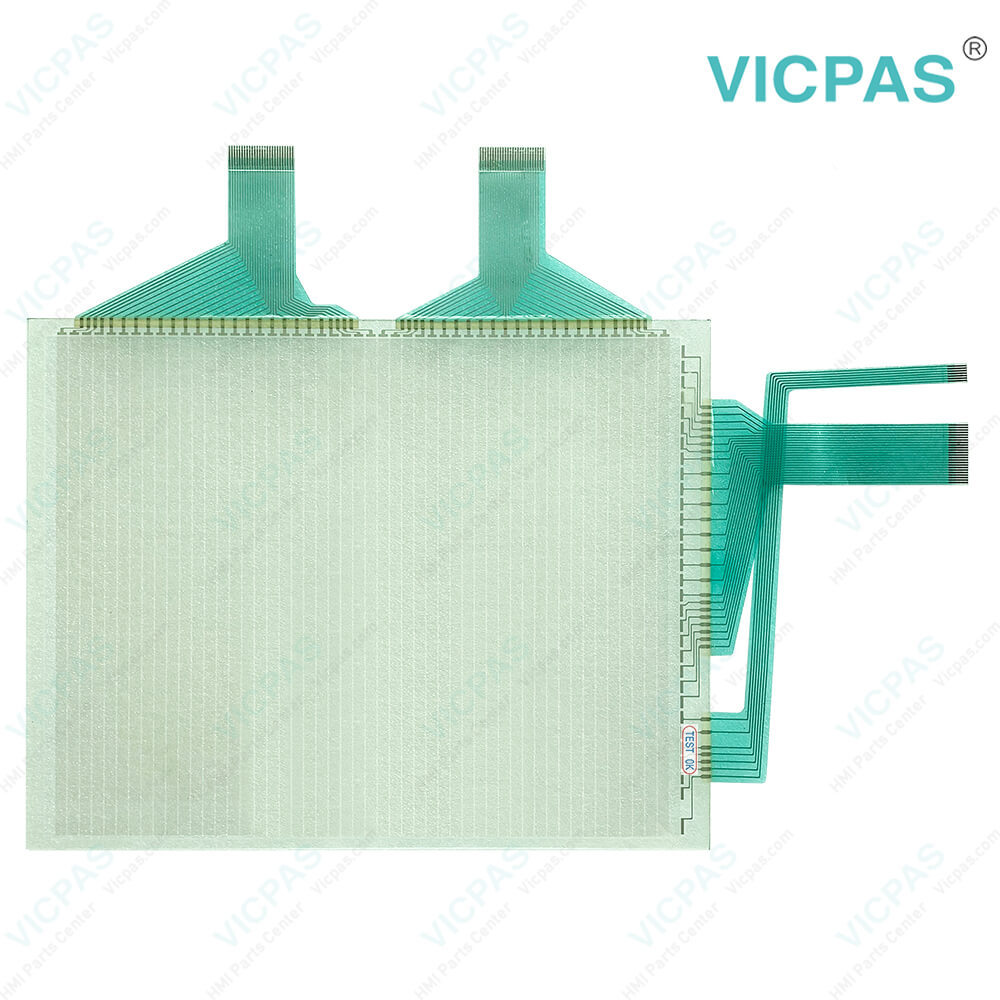

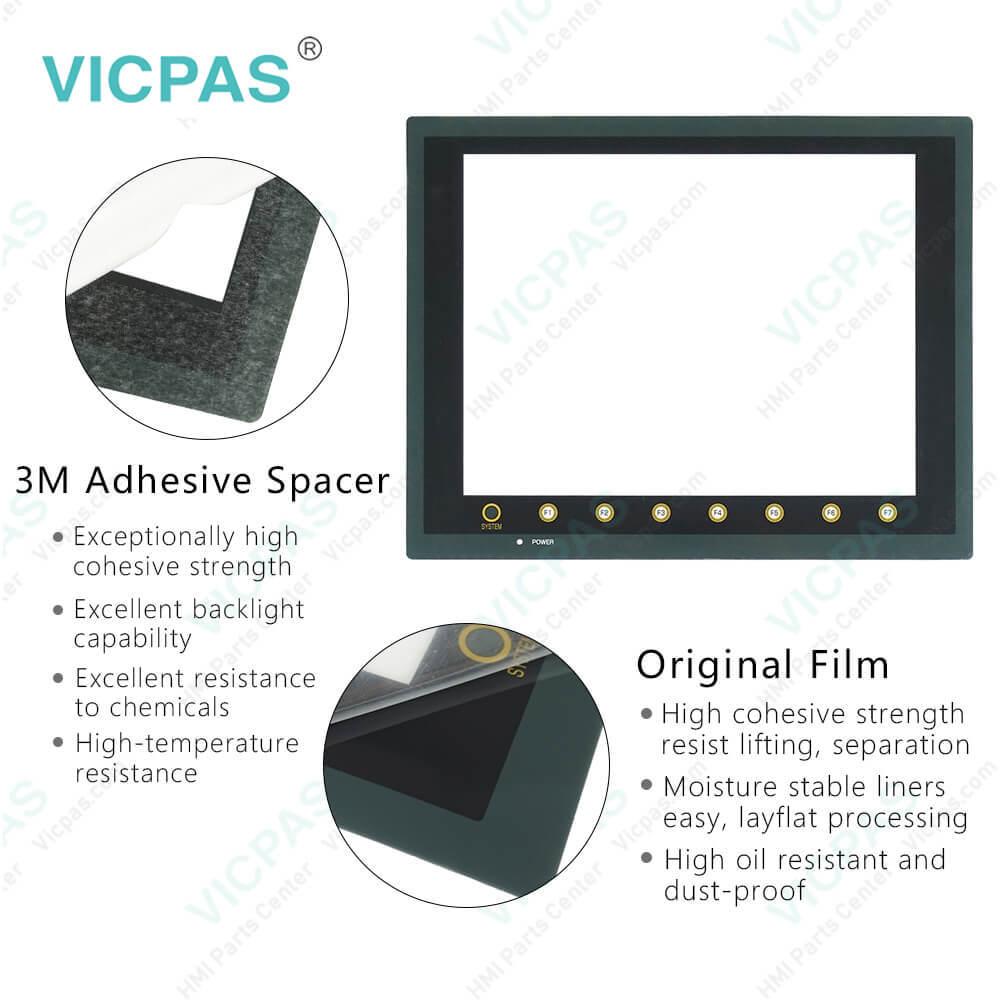

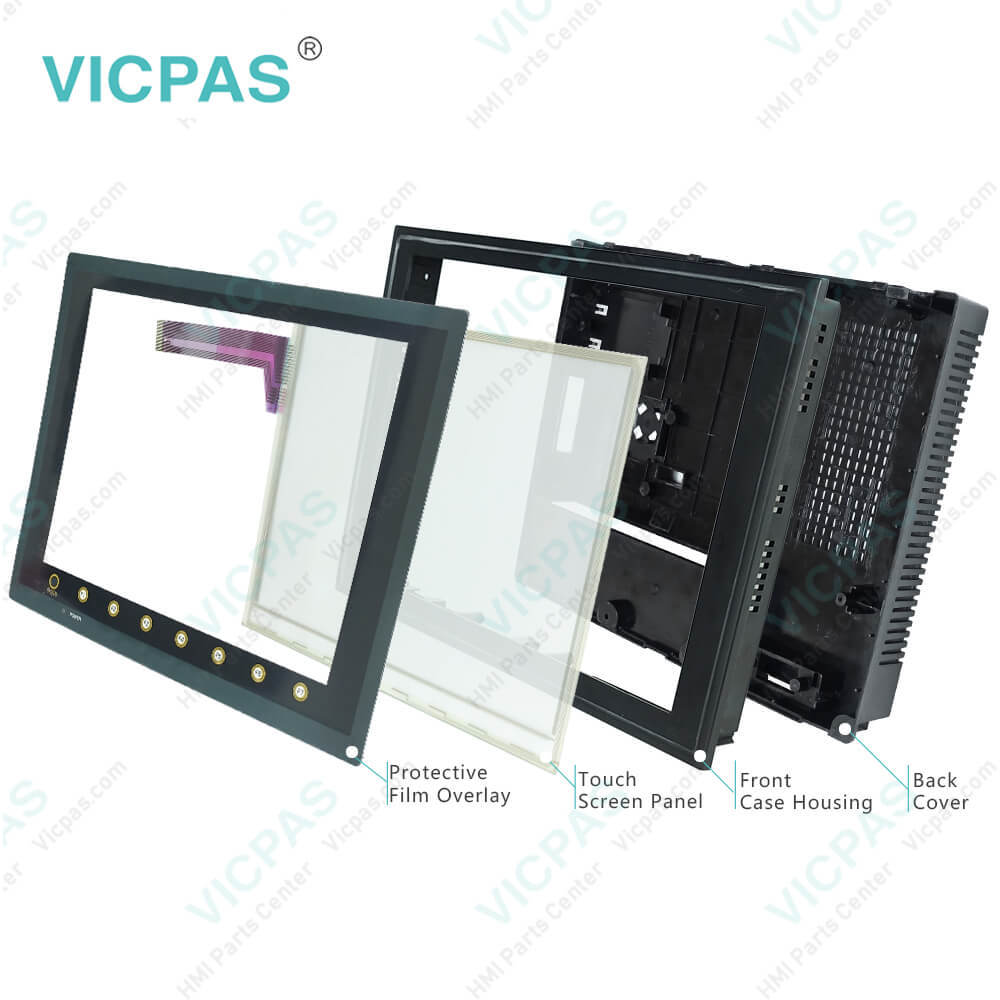

Hakko V712iSM Touchscreen V712iSMD Film Housing

FAQ:

Question: How to set V712iSM V712iSMD Date and Time?

Answer: 1. Move the cursor using the [←] / [→] switch, and change the value by pressing the [+] / [−] switch.2. When the desired date and time are set, press the [Set] switch to determine the setting.3. The calendar data is updated as set.

Question: If a touch switch does not activate at all or if an operation is performed without pressing any touch switch, what should we do?

Answer: Check that the touch switches on the V7 panel are working properly.1. Press the [Switch Check] switch. Grids appear on the screen as shown below.2. Press a position on the panel, and check that the pressed position turns white. The switch is activated normally when the pressed position turns white. To move back to the “I/O Test” screen, press the [F4] switch.To delete white dots press the [F5] switch.3. If a position different from the pressed position turns white, refer to “Touch Switch Adjustment” on the next page and adjust the touch switch position.

Question: How to transfer Screen Data from a V712iSM V712iSMD CF Card?

Answer: The procedure of transferring data between the V7 series and a CF card is described below.1. Mounting the CF card Insert the CF card into the CF card connector at the side of the V7 unit.* Do not remove or insert the CF card in the later steps.2. Data selection Select [Screen Data]. When the lamp is red, it is selected. 3. Transfer selection Select [Display Card] or [Display Card].
