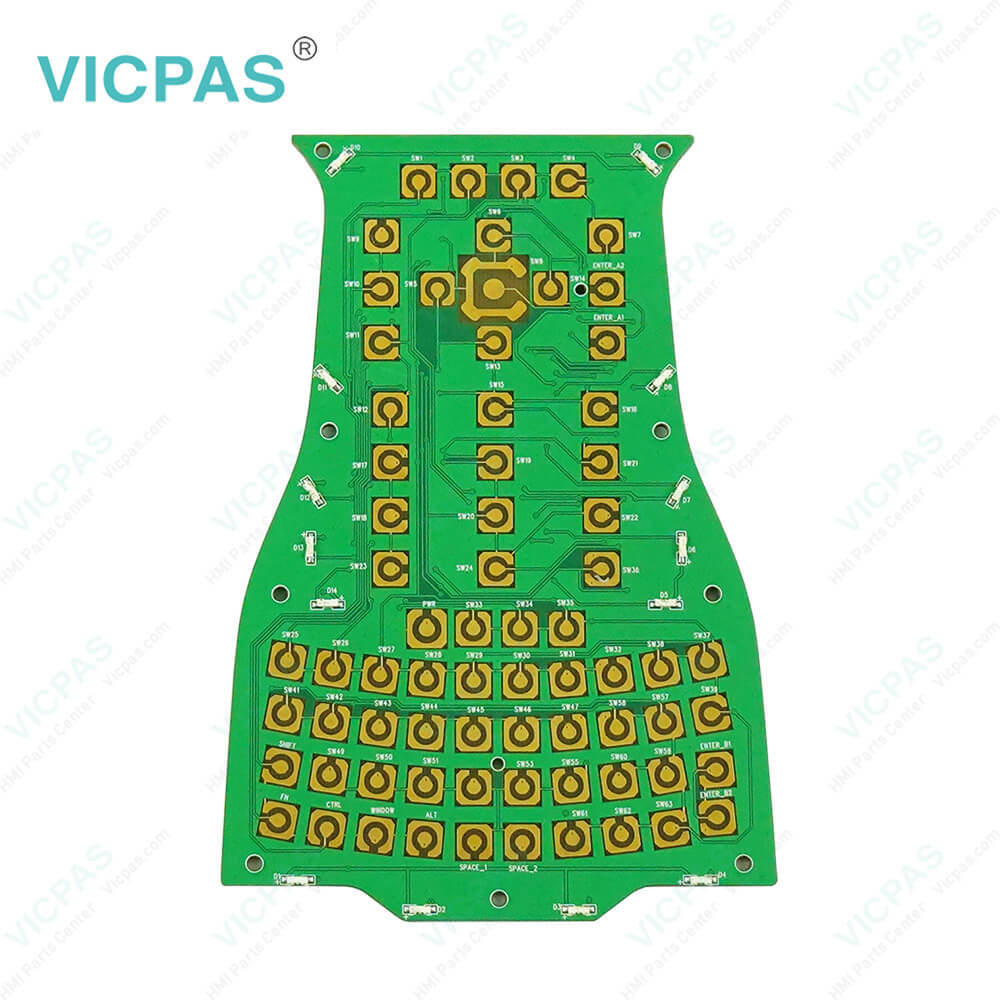

Trimble TSC7 Membrane Keyboard Keypad Replacement
| categories | Trimble |
|---|---|
| Model | Trimble TSC7 PCB molex PN 166300601 REV_B |
| Warranty | 365 Days |
| Product Line | Trimble TSC7 series |
| Supply | Trimble TSC7 Membrane Keypad Switch Repair Parts |
| FOB port | Guangzhou, Shenzhen, Hongkong |
| Terms of Payment | Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card |
| Update Time | 2026-01-30 20:58:49 |
Leading Time{{selectedConditionObj.leading}}
{{item.value}}
{{nameObj.name}}{{nameObj.selectedValue}}
{{valueObj.name}}
Shipping
Detail Information
Specifications:
| Part Number : | TSC7 |
| Display Type: | STN |
| Warranty: | 365 Days |
| Product Line: | Trimble TSC7 Series |
| Input Power: | +24 VDC +/-20% |
| Storage Temperature: | -20°C to 60°C |
| Screen diagonal: | 7 in |
Related BB Teach Pendant Part No.:
| Trimble TSC7 PCB molex PN 166300601 REV_B | Description | Inventory status |
| Trimble FMX FM-1000 | Trimble Membrane Keypad Touchscreen Repair | In Stock |
| Trimble Slate | Trimble Keyboard Membrane Touch Screen Monitor | In Stock |
| Trimble T10 Tablet | Touch Screen Glass Operator Keyboard Trimble | Available Now |
| Trimble TCU3 | Trimble Touch Digitizer Glass Membrane Switch | In Stock |
| Trimble TCU5 | Trimble Touch Screen Panel Keypad Membrane | In Stock |
| Trimble TSC2 AMT98636 | Trimble Touch Screen Glass Membrane Keyboard | In Stock |
| Trimble TSC3 AMT10476 | Touch Digitizer Glass Trimble Membrane Keypad | Available Now |
| Trimble TSC7 | Trimble Membrane Keyboard Keypad Replacement | In Stock |
| Trimble YUMA 2 Rugged | Terminal Keypad HMI Panel Glass Trimble Repair | Available Now |
Trimble TSC7 Membrane Keyboard Keypad Replacement PDF Download:
FAQ:
Question: What is the dimension of Trimble TSC7 molex PN 166300601 REV_B Membrane Keyboard Keypad?
Answer: The dimension of TSC7 Trimble Terminal Keypad is 7 inch.
Question: How to installing the Trimble TSC7 batteries?
Answer: 1. Turn the battery latch 90° clockwise or anticlockwise until the flat edge aligns with a battery opening.NOTE – You can use a coin or the top of the stylus to do this.2. Insert a battery, then turn the battery latch 180° until the flat edge aligns with the second battery opening.3. Insert a second battery.4. Turn the battery latch 90° back to the center position to lock both batteries in place.
